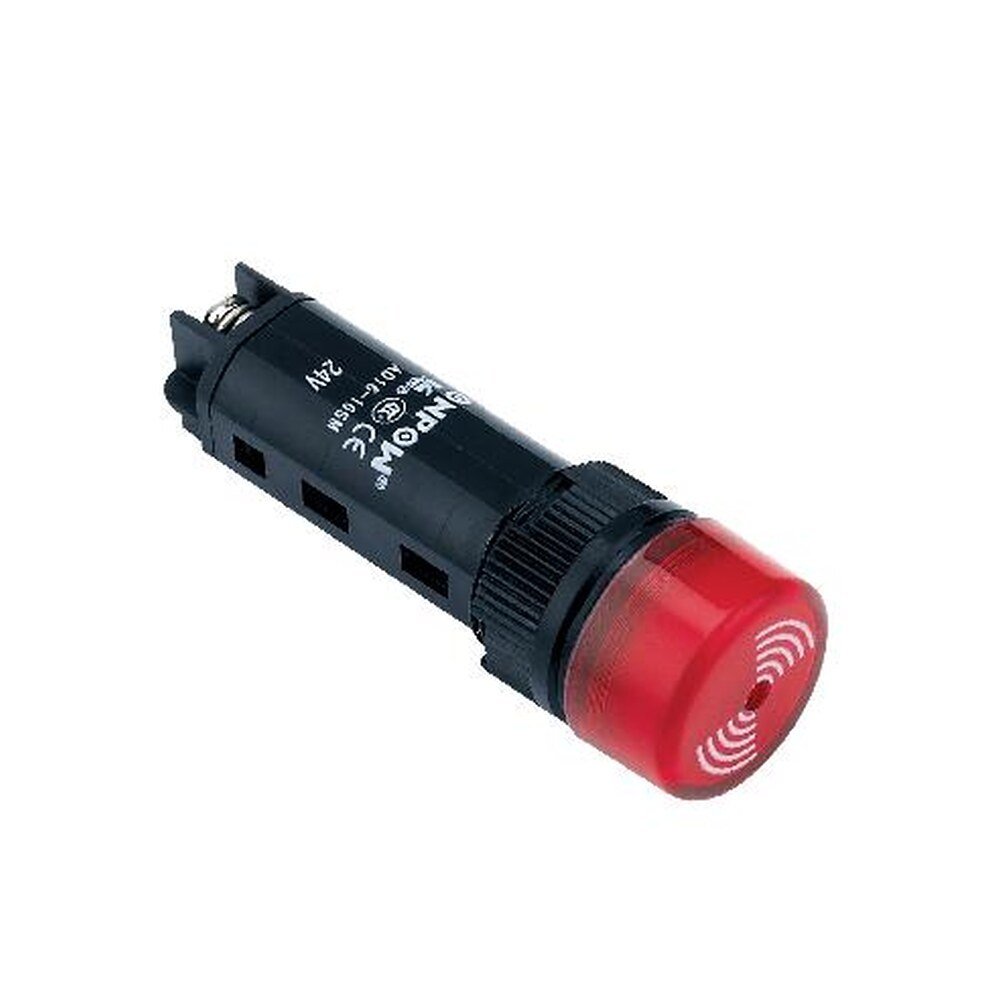

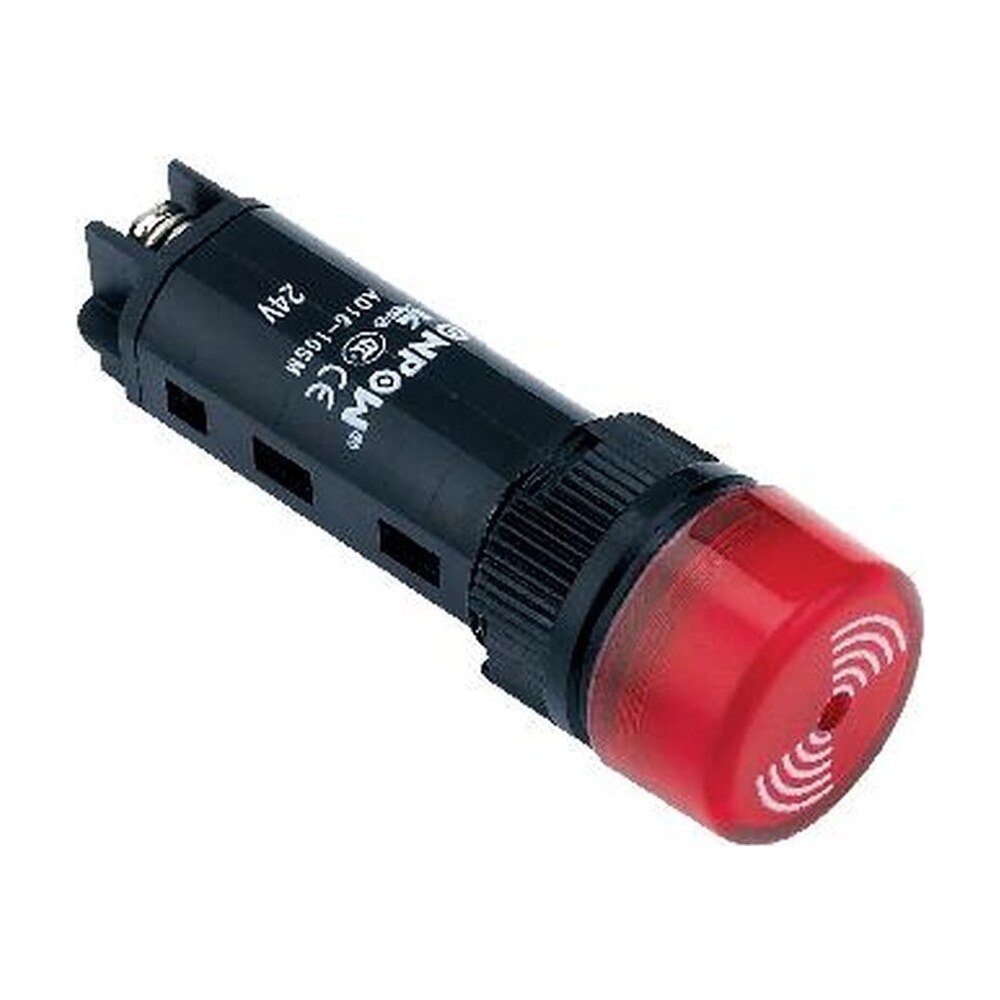

MR-AD16-16-SND - ×16 mm Buzzer and Flashing Light - Continuous, Flashing or Intermittent.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-16-SND is a 16 mm signal device: a continuous buzzer, a flashing light, or a flashing light with an intermittent buzzer, 80 dB at 10 cm.
Ordering. The ordering code is MR-AD16-16X-X: each X is replaced by the option you need - function (M = Continuous sound, S = Flashing light, SM = Flashing light with intermittent sound); voltage (DC6V = DC 6 V, DC12V = DC 12 V, DC24V = DC 24 V, AC220V = AC 220 V, AC380V = AC 380 V). The part numbers are listed below.
Still being confirmed. The light colour is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-AD16-16-SND |
|---|---|
| Also ordered as | AD16-16M, AD16-16S, AD16-16SM |
| Category | Indicator Lights, Switches |
| Ordering code | MR-AD16-16X-X |
| Series | AD16 pilot indicators |
| Type | Buzzer / flashing light |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| Buzzer volume | 80 dB min at 10 cm |
| Current | 35 mA max |
| Mounting hole | Ø16 mm |
| Bezel | Ø19 mm |
| Panel thickness | 5 mm max |
| Head length | 11.2 mm |
| Body length behind panel | 45.5 mm |
| Voltage note | No DC 6 V option for the flashing light or the flashing light with buzzer |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-AD16-16-SND is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-AD16-16M-DC6V | Continuous sound function, DC 6 V voltage |
| MR-AD16-16M-DC12V | Continuous sound function, DC 12 V voltage |
| MR-AD16-16M-DC24V | Continuous sound function, DC 24 V voltage |
| MR-AD16-16M-AC220V | Continuous sound function, AC 220 V voltage |
| MR-AD16-16M-AC380V | Continuous sound function, AC 380 V voltage |
| MR-AD16-16S-DC12V | Flashing light function, DC 12 V voltage |
| MR-AD16-16S-DC24V | Flashing light function, DC 24 V voltage |
| MR-AD16-16S-AC220V | Flashing light function, AC 220 V voltage |
| MR-AD16-16S-AC380V | Flashing light function, AC 380 V voltage |
| MR-AD16-16SM-DC12V | Flashing light with intermittent sound function, DC 12 V voltage |
| MR-AD16-16SM-DC24V | Flashing light with intermittent sound function, DC 24 V voltage |
| MR-AD16-16SM-AC220V | Flashing light with intermittent sound function, AC 220 V voltage |
| MR-AD16-16SM-AC380V | Flashing light with intermittent sound function, AC 380 V voltage |
