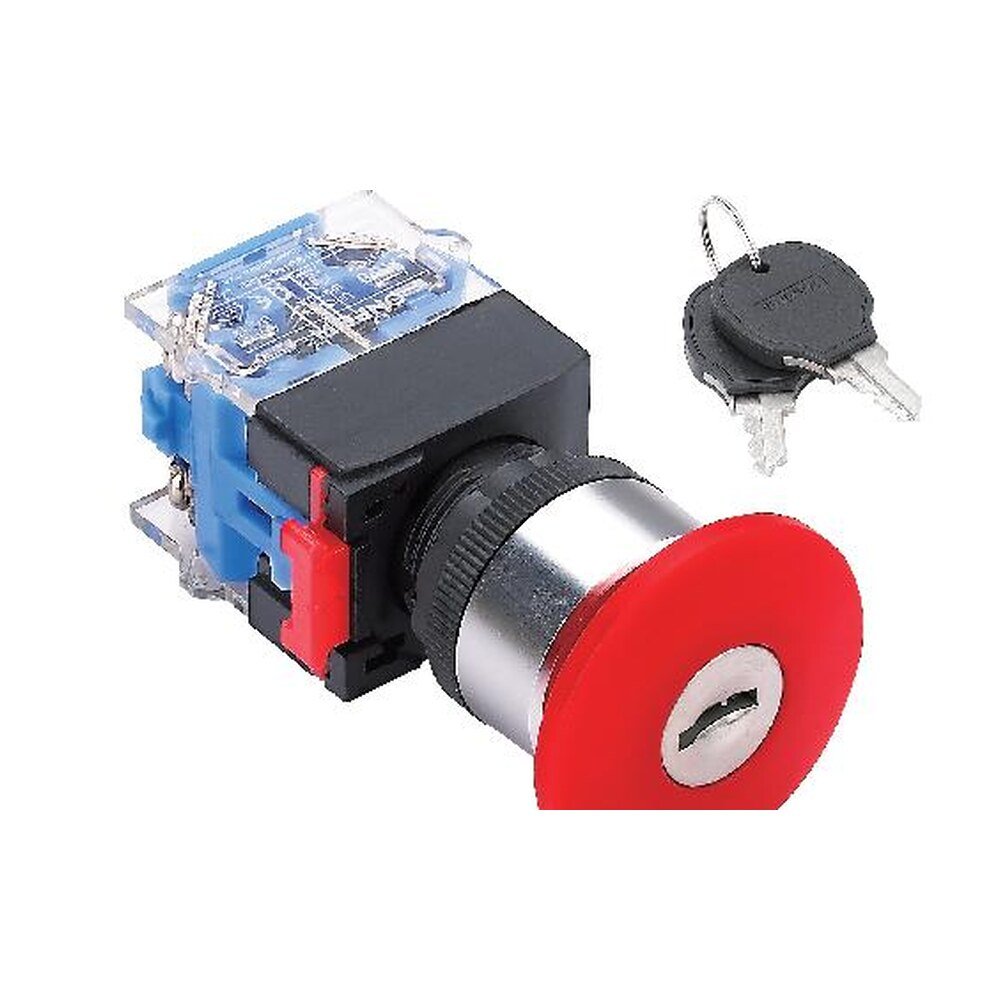

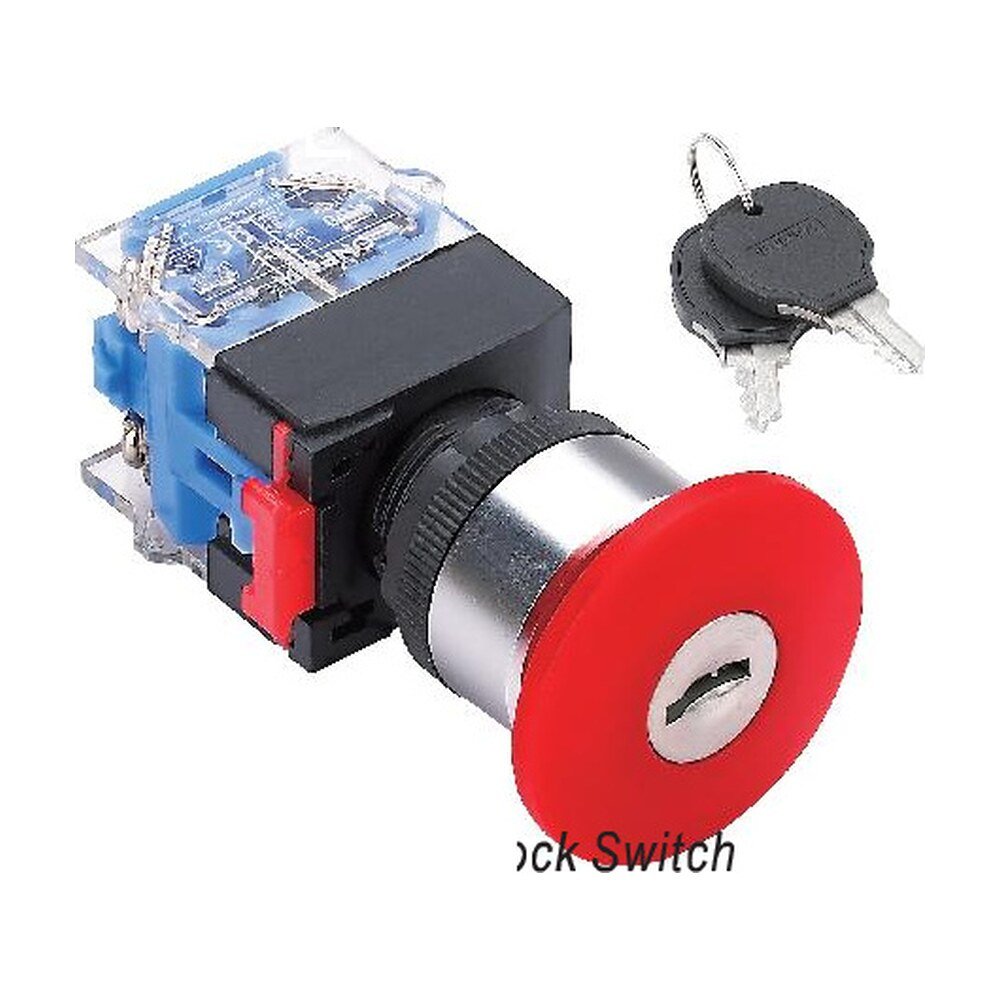

MR-LAS0-K-YTS - 22 mm Key-Release Emergency Stop Switch - Ø40 mm.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS0-K-YTS is a 22 mm modular emergency stop with key release with a Ø40 mm head and one or two groups of screw-terminal contact blocks rated 10 A at 500 V.
Ordering. The ordering code is MR-LAS0-K-#YTS: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC, 20 = 2NO, 02 = 2NC, 22 = 2NO2NC, 40 = 4NO, 04 = 4NC, 31 = 3NO1NC, 13 = 1NO3NC, 30 = 3NO, 03 = 3NC, 21 = 2NO1NC, 12 = 1NO2NC). The part numbers are listed below.
Still being confirmed. The terminal count, the reset method and part numbers for three or more contact groups are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS0-K-YTS |
|---|---|
| Also ordered as | LAS0-K-YTS |
| Category | Emergency Stop Switches, Switches |
| Ordering code | MR-LAS0-K-#YTS |
| Series | LAS0-K (22 mm, aluminium K-type head) |
| Rated insulation voltage Ui | 500 V |
| Thermal current Ith | 10 A |
| Rated operation current, AC-12 | 24 V: 10 A, 110 V: 10 A, 220 V: 6 A |
| Rated operation current, AC-15 | 24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A |
| Rated operation current, DC-12 | 24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A |
| Rated operation current, DC-13 | 24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Contact structure | Modular switch blocks, fast-acting or slow-acting, self-cleaning; 2 elements per block, up to 8 elements |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Body length behind panel | 55 mm |
| Mechanical life | 200,000 operations min |
| Electrical life | 50,000 operations min |
| Head | Ø40 mm |
| Hole spacing | min 50 mm vertically, 42 mm horizontally |
| Accessories | Protective cover T35, Warning ring T14-2260, Protection ring T26 |
| Type | Emergency stop with key release |
| Head length | 24.7 mm |
| Protection class | IP40 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS0-K-YTS is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS0-K-11YTS | 1NO1NC contact |
| MR-LAS0-K-10YTS | 1NO contact |
| MR-LAS0-K-01YTS | 1NC contact |
| MR-LAS0-K-20YTS | 2NO contact |
| MR-LAS0-K-02YTS | 2NC contact |
| MR-LAS0-K-22YTS | 2NO2NC contact |
| MR-LAS0-K-40YTS | 4NO contact |
| MR-LAS0-K-04YTS | 4NC contact |
| MR-LAS0-K-31YTS | 3NO1NC contact |
| MR-LAS0-K-13YTS | 1NO3NC contact |
| MR-LAS0-K-30YTS | 3NO contact |
| MR-LAS0-K-03YTS | 3NC contact |
| MR-LAS0-K-21YTS | 2NO1NC contact |
| MR-LAS0-K-12YTS | 1NO2NC contact |
