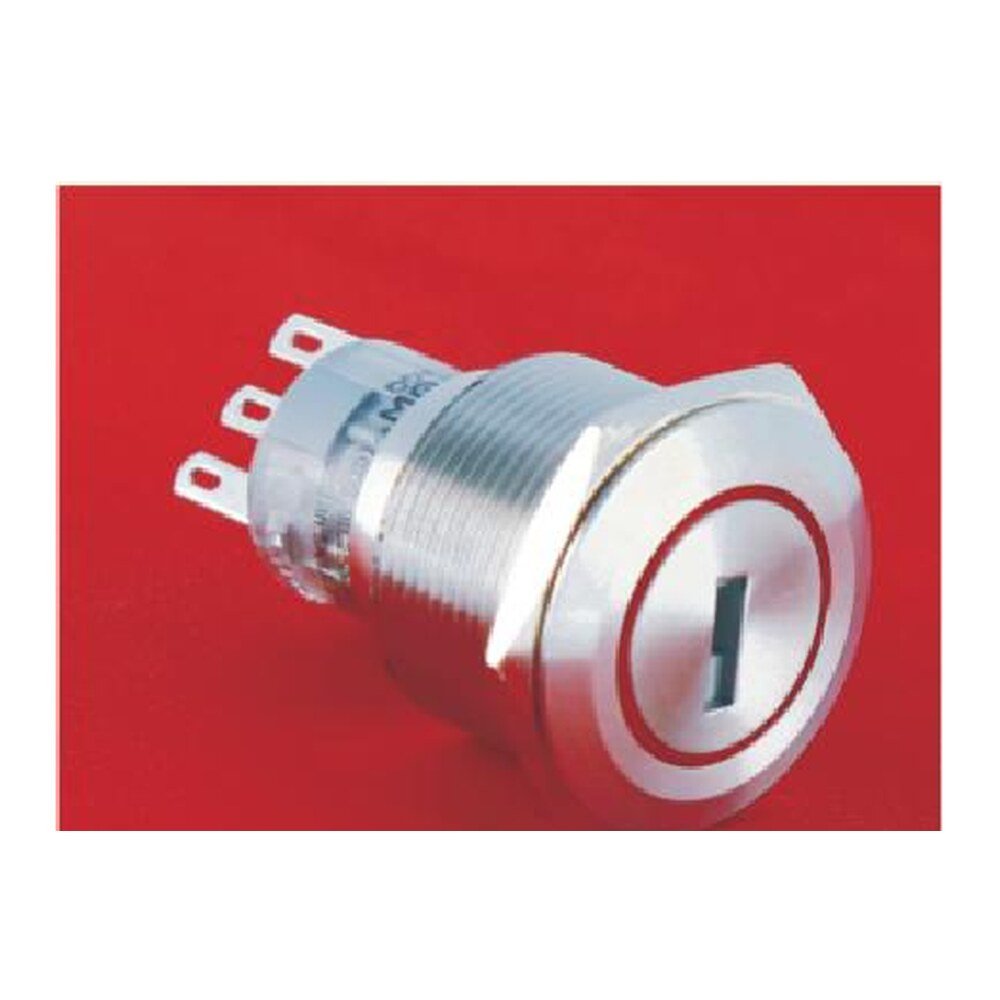

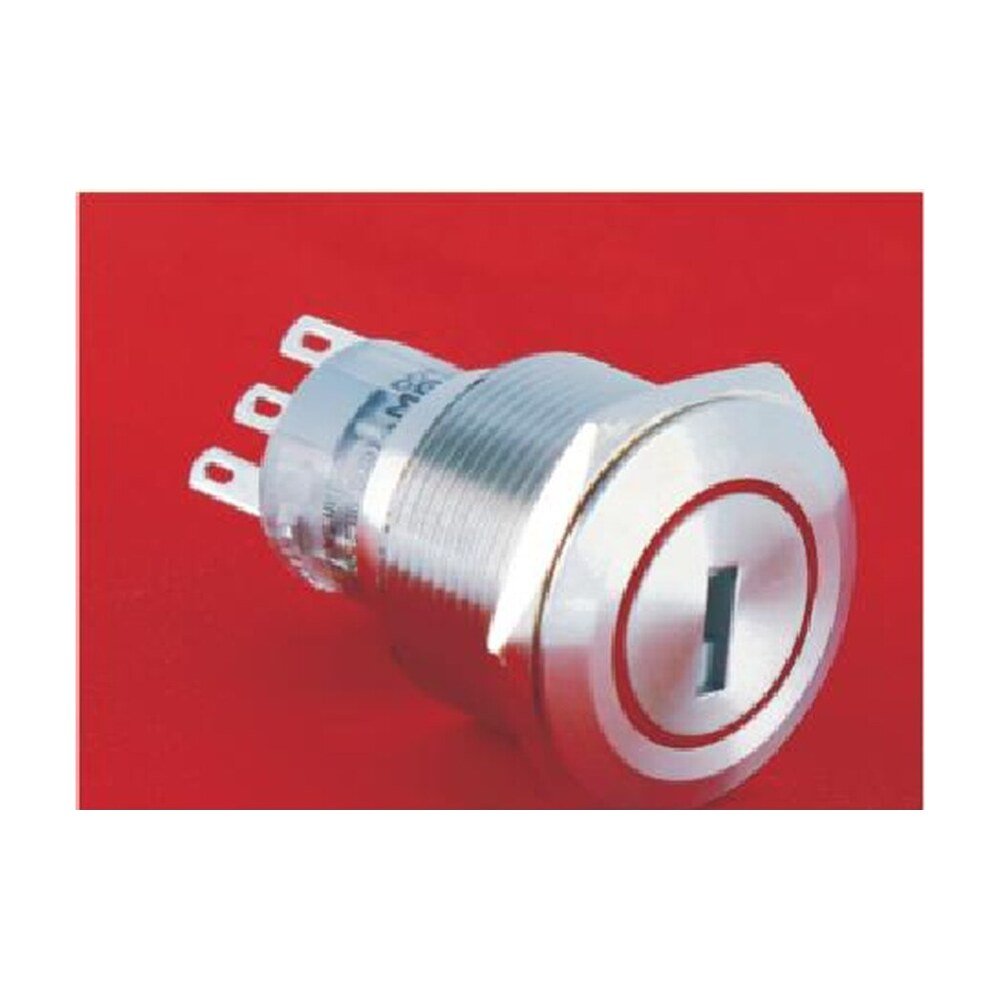

MR-LAS1-AGQ22-Y - 22 mm Key Switch - 2 or 3 Position, Stainless Steel, Two Keys Supplied.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-AGQ22-Y is a 22 mm key switch: a keyed selector through two positions at 90° or three at 45°, with one or two changeover contacts, in stainless steel. Two keys are supplied with each switch.
Still being confirmed. The terminal count and which key code the switch is supplied to, and whether keys can be keyed alike are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ22-Y |
|---|---|
| Also ordered as | LAS1-AGQ22-Y |
| Category | Key Switches, Switches |
| Ordering code | MR-LAS1-AGQ22-XXY-X-X-S |
| Series | LAS1-AGQ |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Operating positions | 2 = second position (90°), 3 = third position (45°) |
| Action type | 1 = retention, 3 = fully self-return |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 200,000 operations |
| Electrical life | 50,000 cycles |
| Nut torque | 0.6 Nm approx |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø22 mm |
| Mounting | M22 × 1 threaded bush |
| Bezel diameter | Ø25 mm |
| Bezel height | 10 mm max |
| Across flats | 28.5 mm |
| Accessories | Solder socket S04, PCB socket S05 |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) |
| Installation note | The knob or key must be turned fully into position in use; a 10.4 mm anti-rotation groove at Ø22 mm is recommended |
| Operation type | Y = key switch |
| Keys supplied | 2 |
| Protection class | IP40 (IP65 can be customised), IK09 |
| Body length behind panel | 37.2 mm |
| Key barrel length | 15.8 mm |
| Availability | Please call for pricing and availability |
