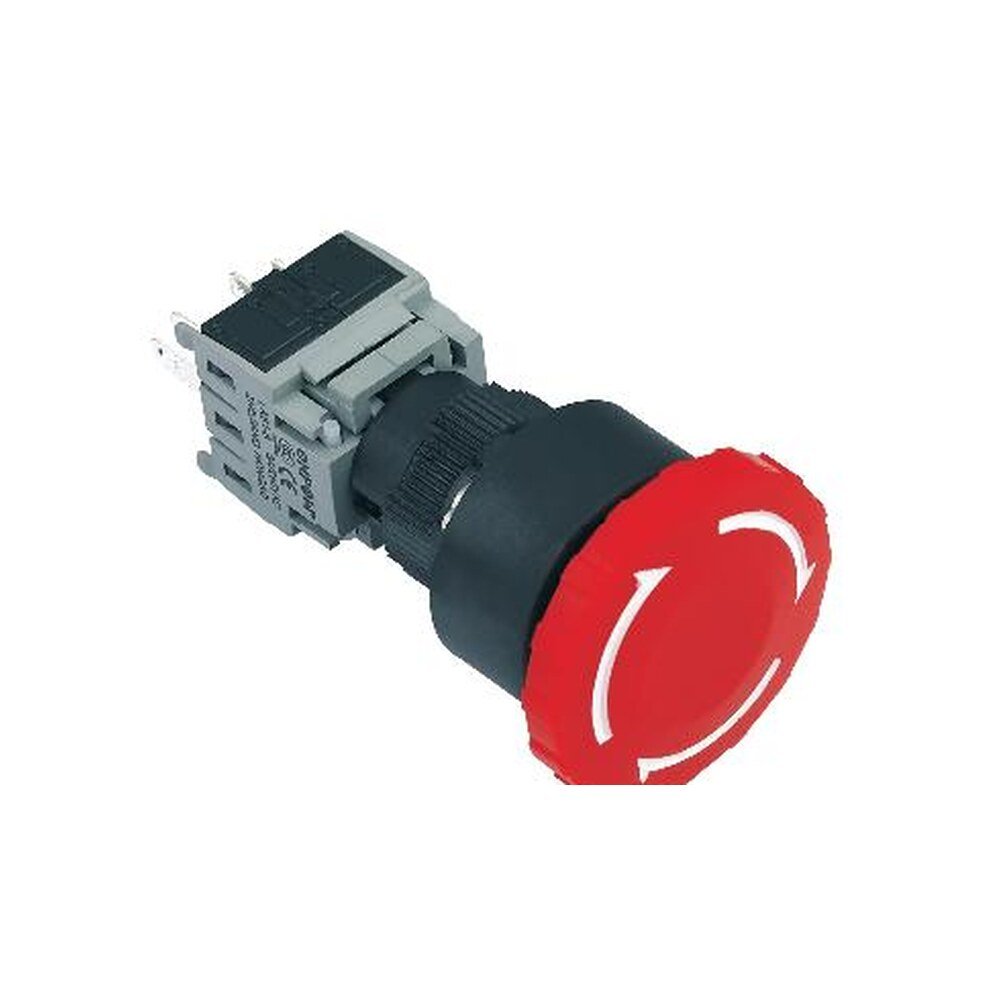

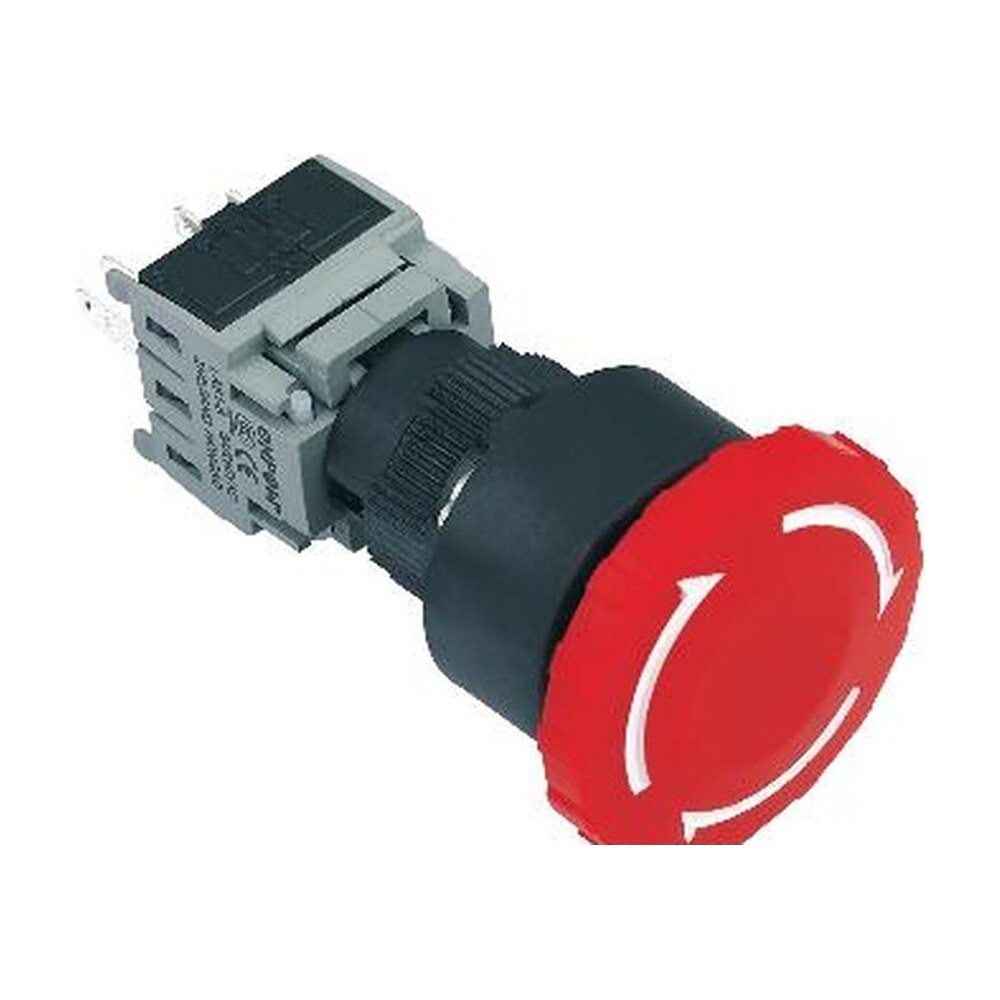

MR-LAS1-BY-TSA - 16 mm Emergency Stop Switch - Ø30.8 mm, Can Be Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-BY-TSA is a 16 mm plastic emergency stop switch with a Ø30.8 mm head that can be lit, and one to three double-break changeover contacts.
Ordering. The ordering code is MR-LAS1-BY-#TSA-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 22 = 2NO2NC, 33 = 3NO3NC); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count, the mechanical life, the reset method and the head colour options are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-BY-TSA |
|---|---|
| Also ordered as | LAS1-BY-TSA |
| Category | Emergency Stop Switches, Switches |
| Ordering code | MR-LAS1-BY-#TSA-# |
| Series | LAS1-B (16 mm plastic) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min |
| Dielectric strength | 2000 V AC between contact and LED terminals, 1500 V AC between terminals of the same pole, 2000 V AC between poles |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C |
| Operating humidity | 45 % to 85 % RH |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm², Pin terminal 2.8 × 0.5 mm |
| Contact structure | Double-break, fast action, self-cleaning; 1 to 3 elements |
| Operation travel | 3 mm approx |
| Operating force | 2.8 N (1 element), 3.5 N (2 elements), 4.7 N (3 elements) |
| Protection class | IP40 |
| Panel cut-out | Ø16 mm (+0.2 / −0) |
| Housing material | Plastic |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Internal resistor |
| Type | Emergency stop, can be illuminated |
| Head | Ø30.8 mm |
| Head length | 23 mm |
| Bezel height | 6 mm max |
| Body length behind panel | 43 mm |
| Hole spacing | min 32 mm spacing both ways |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-BY-TSA is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-BY-11TSA-6V | 1NO1NC contact, 6 V led voltage |
| MR-LAS1-BY-11TSA-12V | 1NO1NC contact, 12 V led voltage |
| MR-LAS1-BY-11TSA-24V | 1NO1NC contact, 24 V led voltage |
| MR-LAS1-BY-11TSA-220V | 1NO1NC contact, 220 V led voltage |
| MR-LAS1-BY-22TSA-6V | 2NO2NC contact, 6 V led voltage |
| MR-LAS1-BY-22TSA-12V | 2NO2NC contact, 12 V led voltage |
| MR-LAS1-BY-22TSA-24V | 2NO2NC contact, 24 V led voltage |
| MR-LAS1-BY-22TSA-220V | 2NO2NC contact, 220 V led voltage |
| MR-LAS1-BY-33TSA-6V | 3NO3NC contact, 6 V led voltage |
| MR-LAS1-BY-33TSA-12V | 3NO3NC contact, 12 V led voltage |
| MR-LAS1-BY-33TSA-24V | 3NO3NC contact, 24 V led voltage |
| MR-LAS1-BY-33TSA-220V | 3NO3NC contact, 220 V led voltage |
