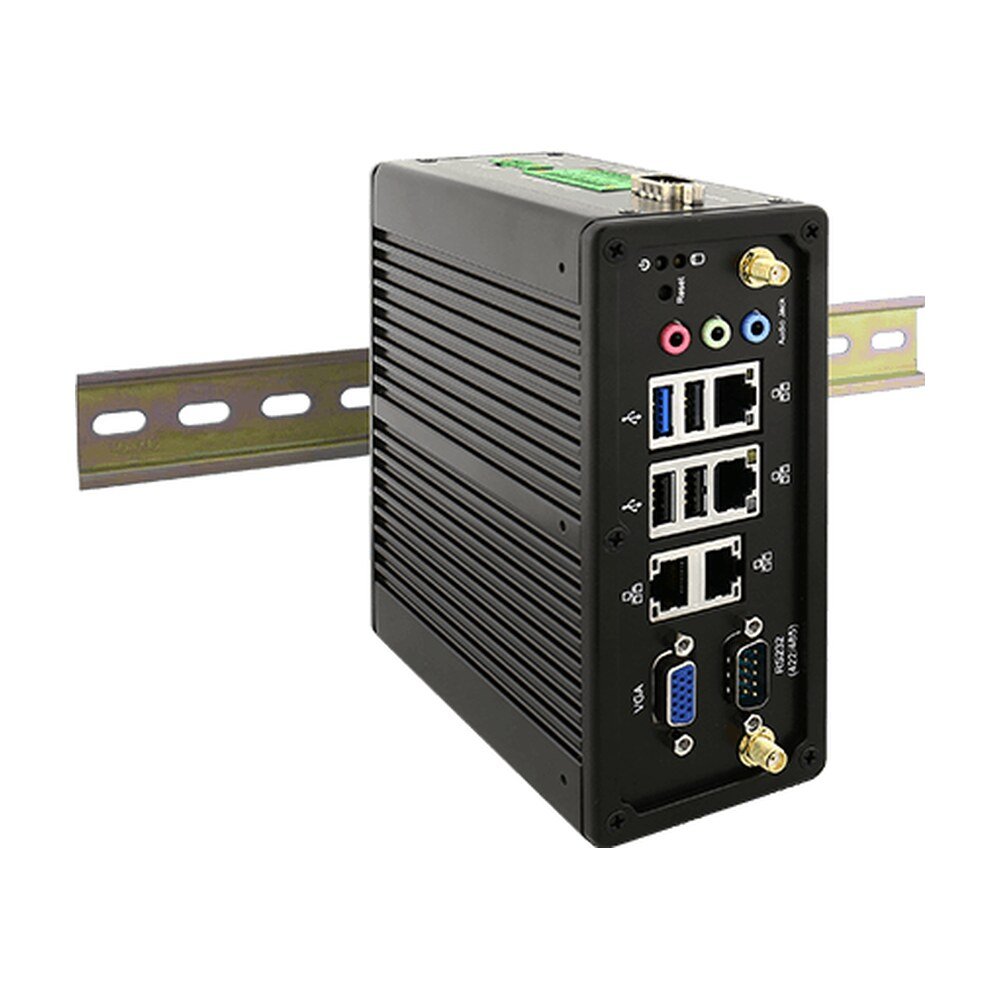

Explore Winmate IBDRW100-EX, a hazardous-area rugged computer featuring Intel® Celeron® N2930, ATEX for oil and gas and chemical processing.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IBDRW100-EX, a hazardous-area rugged computer featuring Intel® Celeron® N2930, ATEX for oil and gas and chemical processing.
ATEX Zone 2 certified computers for remote data collection, process visualization, and control
The Intel® Celeron® N2930 is a power-efficient quad-core SoC for entry-level notebooks. It is clocked at 1.83 - 2.16 GHz and part of the Bay Trail-M platform. Thanks to the specially optimized 22-nanometer low-power process (P1271) with tri-gate transistors, performance, and energy efficiency have been significantly improved compared to previous Intel® Atom® CPUs. The N2930 supports Quick Sync as well as Wireless Display.
Built rugged, the IBDRW Series features wide temperature and voltage operating ranges, making it tough enough to take on an industrial environment.

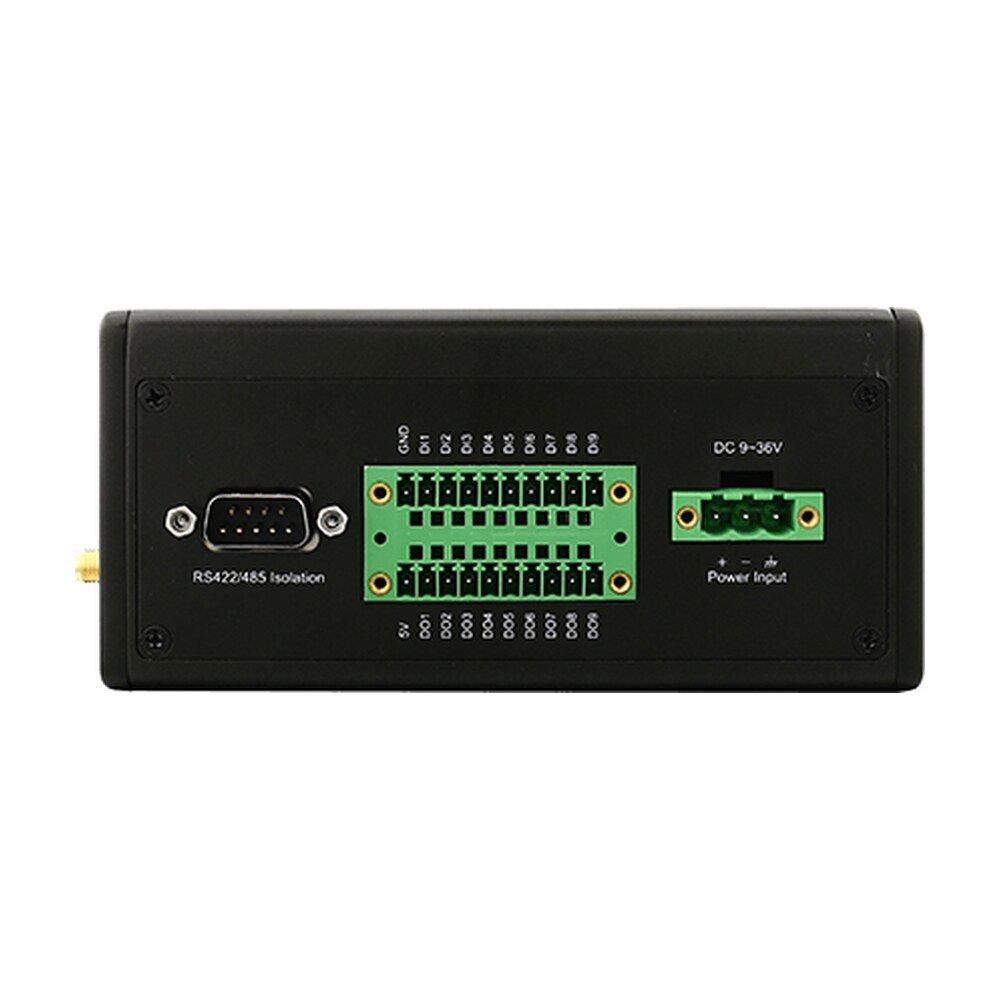

Din Rail Box PCs are built to be easy to install, access, and maintain. The IBDRW Series has a wide array of I/O support, all of which are located on the PC's front or topsides.
| System Specification | |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 4 x Intel® Ethernet Controller |
| Security | TPM (Optional) |
| Operating System | Windows 7 Embedded Systems (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi), 1 x mPCIe slot(for SSD) |
| Mechanical | |
| Dimension | 139 x 65.4 x 152 mm |
| Weight | 1.5 kg |
| Mounting | Din-Rail mounting |

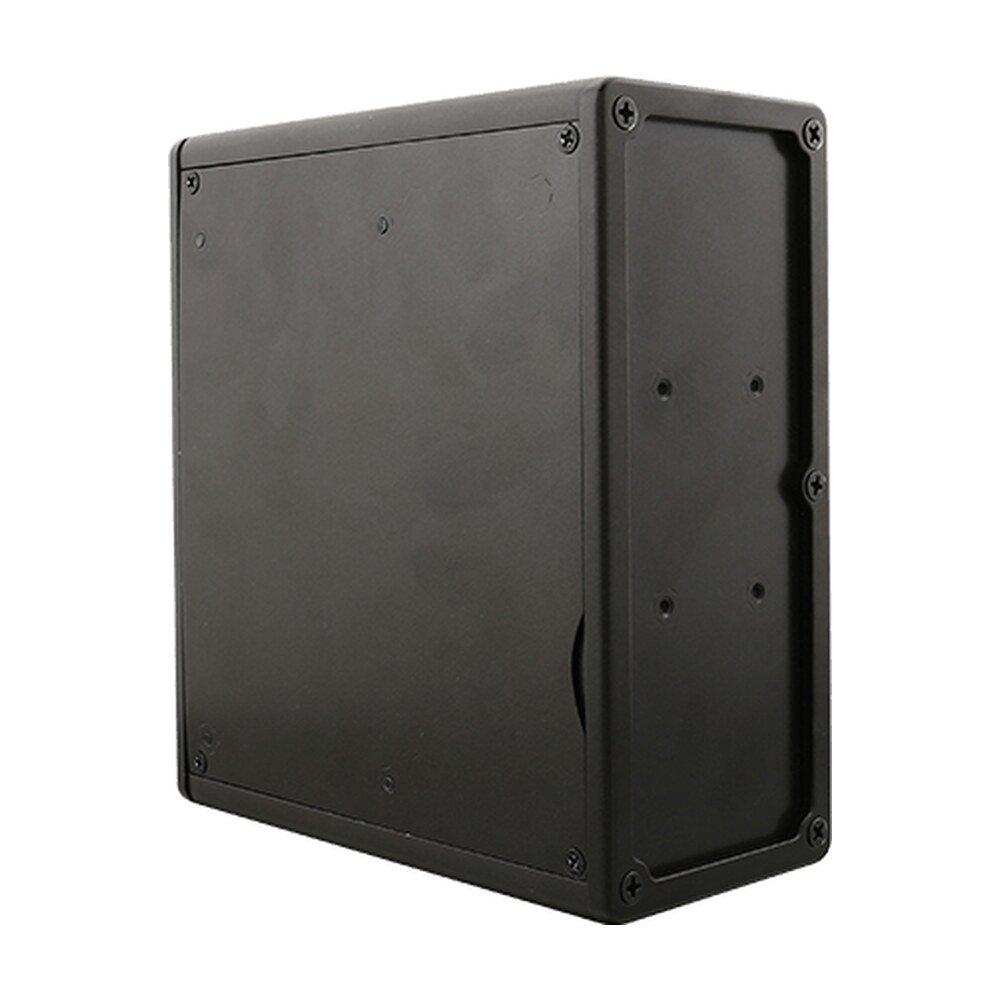

| Enclosure | Aluminum Housing |

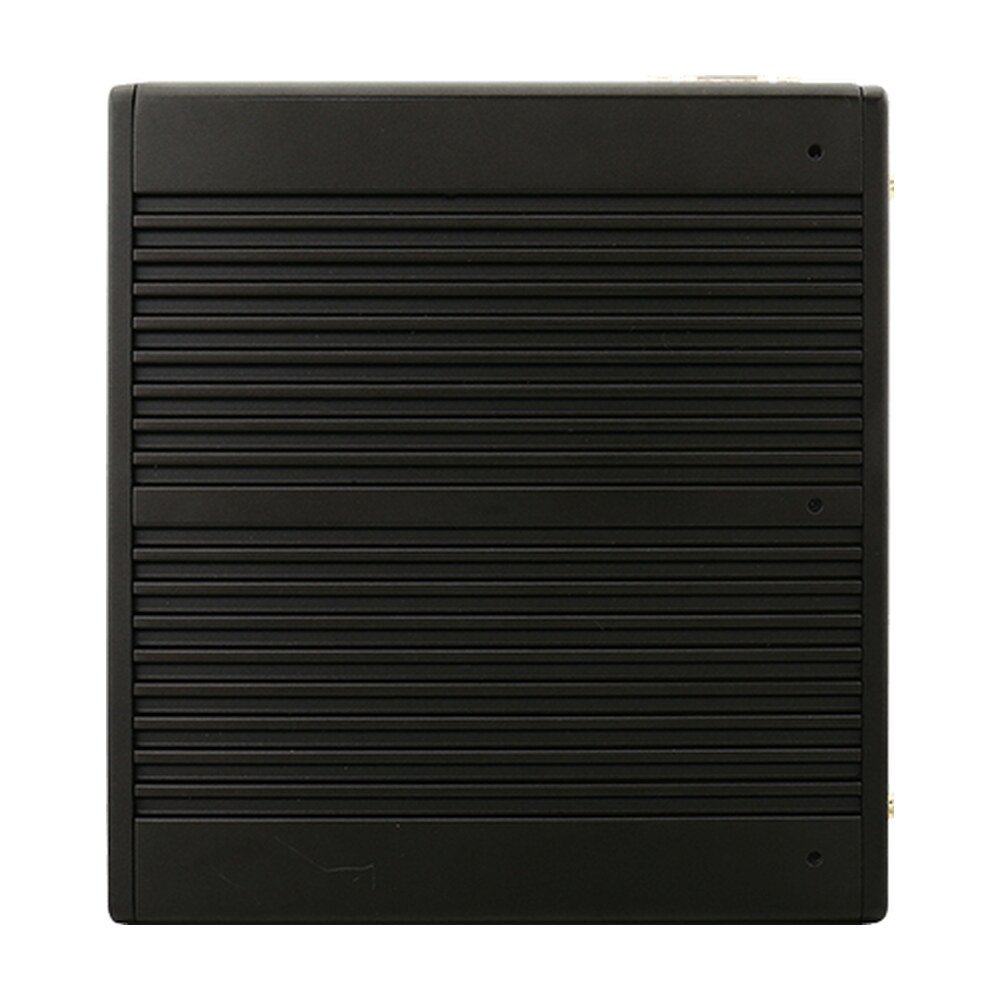

| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Certification | |
| Certification | CE, FCC, , UL 508, CSA C22.2 No.142-m1987, UL 60950-1, CSA C22.2 No. 60950-1-07, EN 62368-1, , Class I, Div.2, Groups A,B,C,D, -20 <= Tamb <= 60, Meet Standards, ANSI/ISA-12.12.01-2013-6-03, CAN/CSA C22.2 No. 213-M1987, , ATEX II 3G Ex nA IIC T4 Gc, -20 <= Tamb <= 60, Meet Standards, EN 60079-0, EN 60079-15 |
| IO Ports | |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A), 3 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 DB9 connector (Default RS232), 1 x Isolated RS422/485 DB9 connector (Default RS422) |
| LAN | 4 x Giga LAN RJ45 Connector, (one of them is disabled if WLAN module is added) |
| Video | 1 x VGA DB15 connector |
| Audio | Mic in, Line in, Line out |
| Expansion Port | 1 x mPCIe slot(for SSD), 1 x mPCIe slot(for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| DIDO | 1 x Isolated 5V 9-in/9-out DIO with 20-Pin Terminal block (Default), 1 x Isolated 30V 9-in/8-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 10-in/7-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 11-in/6-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 12-in/5-out DIO with 20-Pin Terminal block (Optional) |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| Control | |
| Button | 1 x Reset Button |
| Accessory | |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 2 x Terminal Block 10 pin fconnector for DIDO, 1 x Open Wire Cable, 1 x Terminal Block 3 pin to 2.5Ø Female Adapter Cable, 1 x Din Rail Mounting kits, 1 x Cable Holder kits |
| Power | |
| Power Rating | 9V to 36V DC with isolation, 3-Pin Terminal Block |
| Adapter | 12V 36W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IBDRW100-EX |
| Series | DIN Rail Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IBDRW100-EX |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 4 x Intel® Ethernet Controller |
| Security | TPM (Optional) |
| Operating System | Windows 7 Embedded Systems (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi), 1 x mPCIe slot(for SSD) |
| Dimension | 139 x 65.4 x 152 mm |
| Weight | 1.5 kg |
| Mounting | Din-Rail mounting |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A), 3 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 DB9 connector (Default RS232), 1 x Isolated RS422/485 DB9 connector (Default RS422) |
| LAN | 4 x Giga LAN RJ45 Connector, (one of them is disabled if WLAN module is added) |
| Video | 1 x VGA DB15 connector |
| Audio | Mic in, Line in, Line out |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| Button | 1 x Reset Button |
| Power Rating | 9V to 36V DC with isolation, 3-Pin Terminal Block |
| Adapter | 12V 36W |
| Brand | Winmate |
| Manufacturer part number | IBDRW100-EX |
| Series | DIN Rail Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
