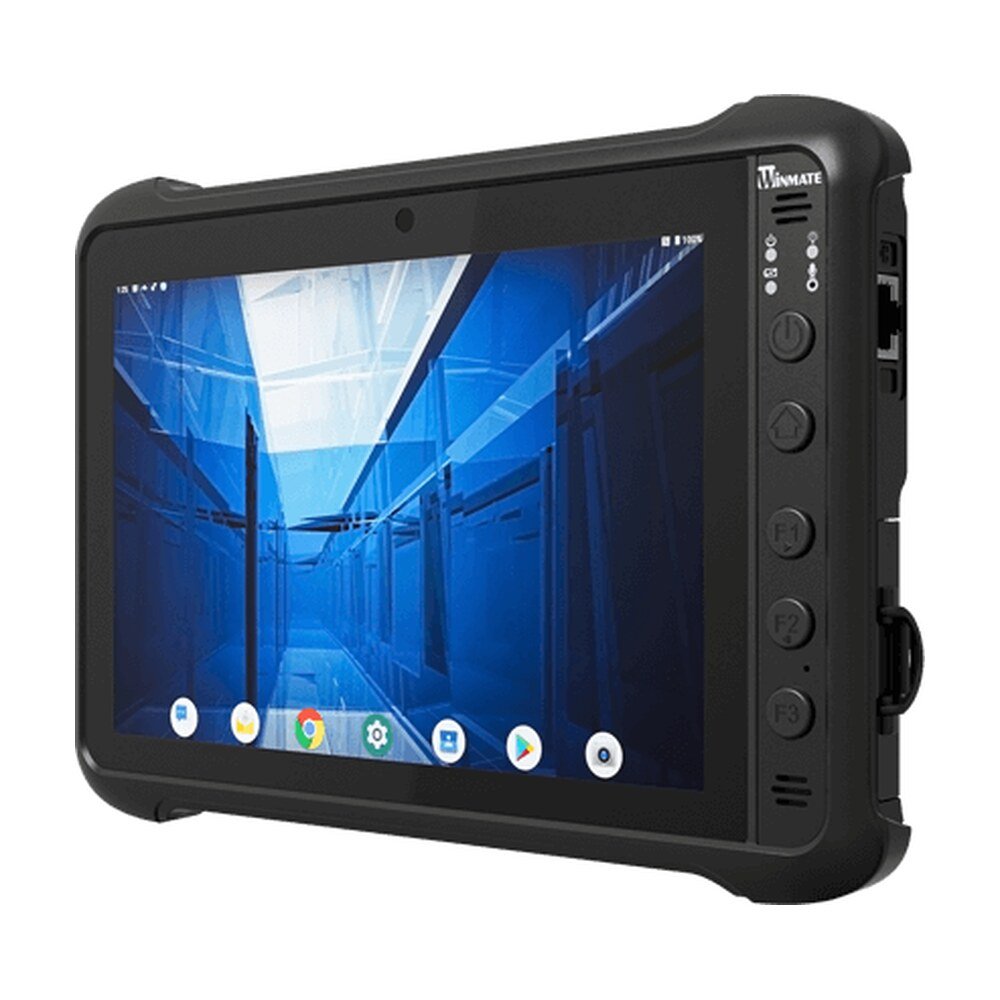

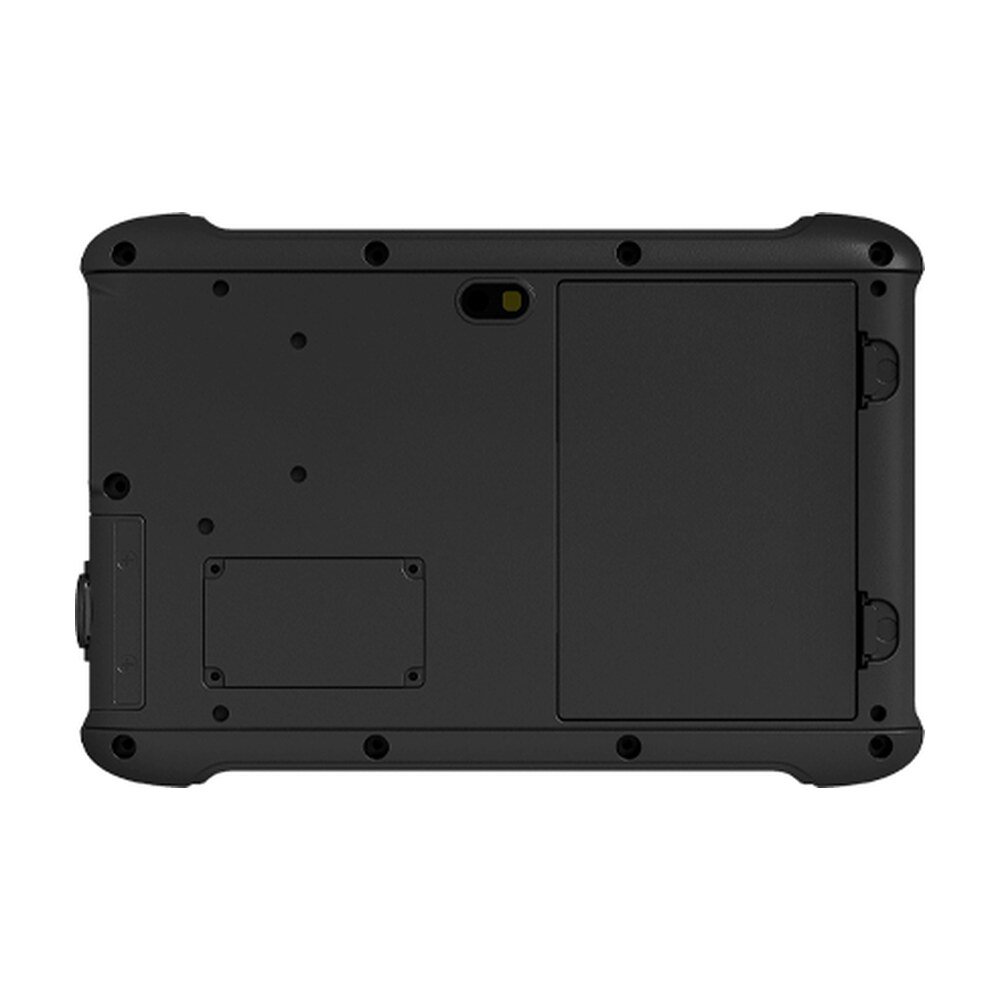

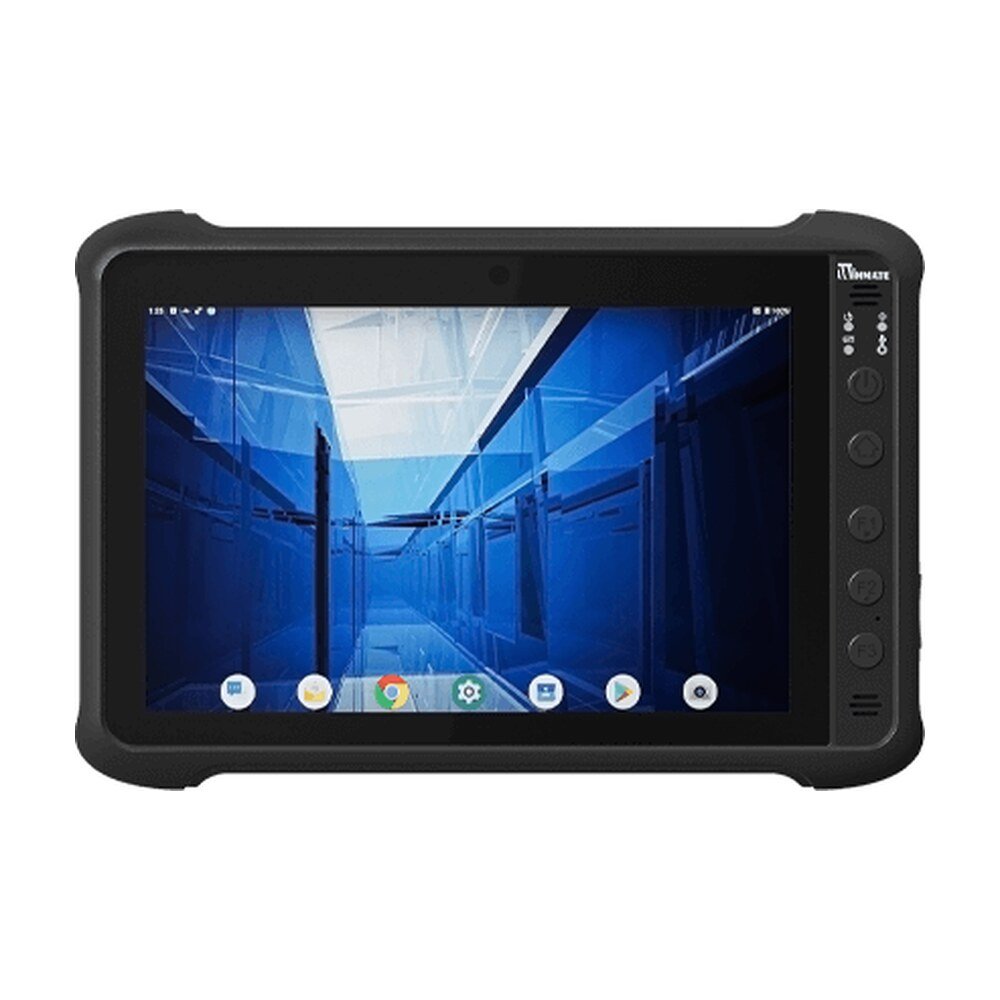

Explore Winmate M900MGN, a rugged tablet PC featuring 8-inch display with 1280x800 resolution for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M900MGN, a rugged tablet PC featuring 8-inch display with 1280x800 resolution for field service and inspection.
Powered by the ARM Genio 510 platform, the M900MGN is engineered for modern edge computing and AI-powered Android applications. With an hexa-core CPU and integrated NPU for edge AI and VPU for visual processing, it delivers seamless multitasking, advanced multimedia performance, and fast responsiveness. Ideal for smart retail, industrial automation, mobile inspections, and field logistics.
Equipped with an 8-inch 1280x800 IPS LED panel, the tablet features direct optical bonding and antiglare treatment, making it sunlight readable in challenging environments. This ensures crisp visuals, reduced reflections, and reliable operation even under bright daylight conditions.
The projected capacitive multitouch technology offers intuitive operation even when gloves are worn, enabling seamless interaction in demanding environments. Its rugged screen surface is well-suited for industrial use cases where precision and responsiveness are essential, particularly in fast-paced fieldwork.
Designed for seamless mobile deployment, the M900MGN supports optional 4G WWAN modules. This allows uninterrupted data transmission and cloud access in remote areas, ensuring your workforce stays connected wherever operations go.
| Display | |
|---|---|
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | Onboard 64 GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC Reader (Optional) |
| Sensors | G-Sensor, E-Compass, Gyro, Light Sensor |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 226.6 x 147.8 x 21.5 mm |
| Weight | 900g |
| IO Ports | |
| USB Port | 1 x USB 3.0 Type A, 1 x USB 2.0 Type C OTG, (support PD 3.0 charging) |
| LAN | 1 x RJ45 |
| Audio | 2 x Built-in Digital Mic, 2 x 1W Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 2 x LED Indicators, (Power, Battery) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 5 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Control | |
| Button | 1 x Power, 1 x Menu,, 3 x Programmable Function Keys |
| Power | |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Power Rating | 19V DC |
| Adapter | 100-240 AC to 19V DC out Adapter (Default), 100W PD Adapter (Optional) |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery Pack |
| Optional Accessory | Desk Dock, Vehicle Dock, Vehicle Cradle, Vehicle Charger, Battery Charger, Hand Strap, Capacitive Stylus, PD Adapter |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M900MGN |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M900MGN |
|---|---|
| Category | Android Rugged Tablets, Enterprise Mobility, Winmate |
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Processor | ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | Onboard 64 GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC Reader (Optional) |
| Sensors | G-Sensor, E-Compass, Gyro, Light Sensor |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Dimension | 226.6 x 147.8 x 21.5 mm |
| Weight | 900g |
| USB Port | 1 x USB 3.0 Type A, 1 x USB 2.0 Type C OTG, (support PD 3.0 charging) |
| LAN | 1 x RJ45 |
| Audio | 2 x Built-in Digital Mic, 2 x 1W Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 2 x LED Indicators, (Power, Battery) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 5 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Button | 1 x Power, 1 x Menu,, 3 x Programmable Function Keys |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Power Rating | 19V DC |
| Adapter | 100-240 AC to 19V DC out Adapter (Default), 100W PD Adapter (Optional) |
| Accessory | Adapter and Power Cord, Standard Battery Pack |
| Optional Accessory | Desk Dock, Vehicle Dock, Vehicle Cradle, Vehicle Charger, Battery Charger, Hand Strap, Capacitive Stylus, PD Adapter |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M900MGN |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
