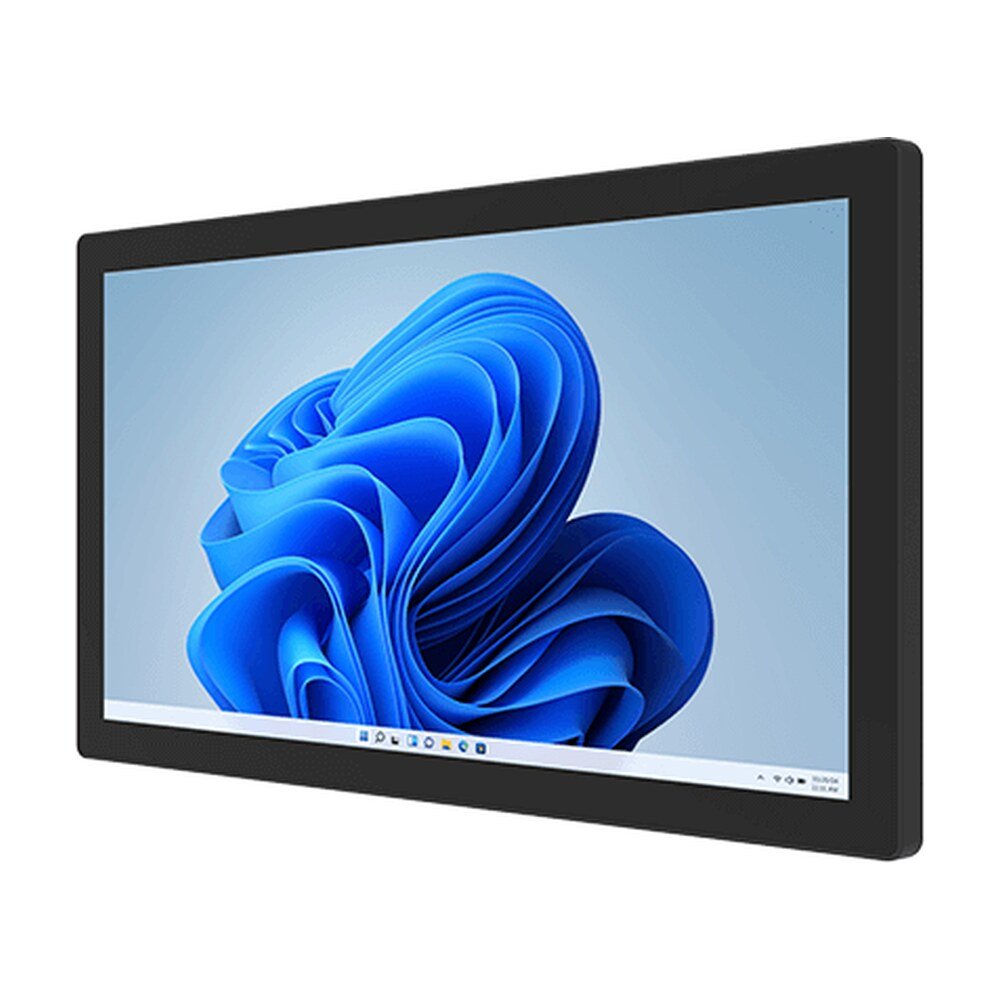

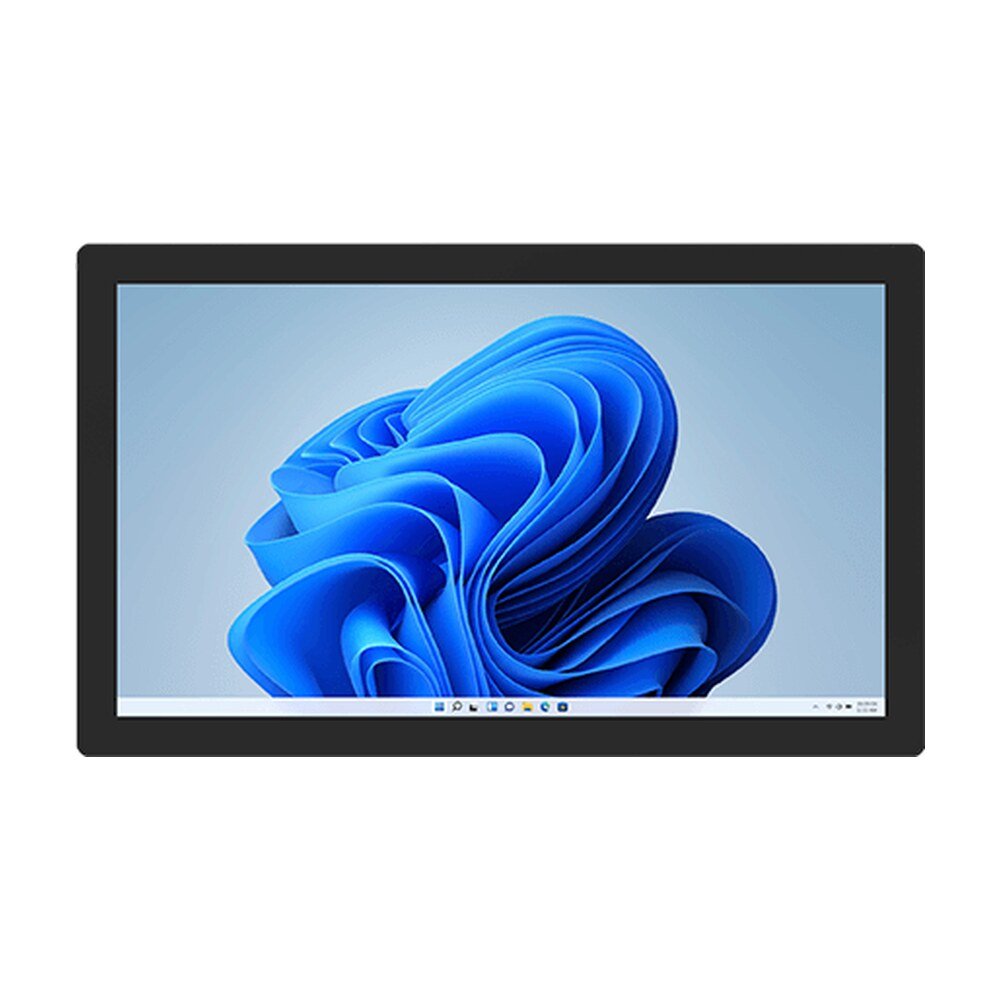

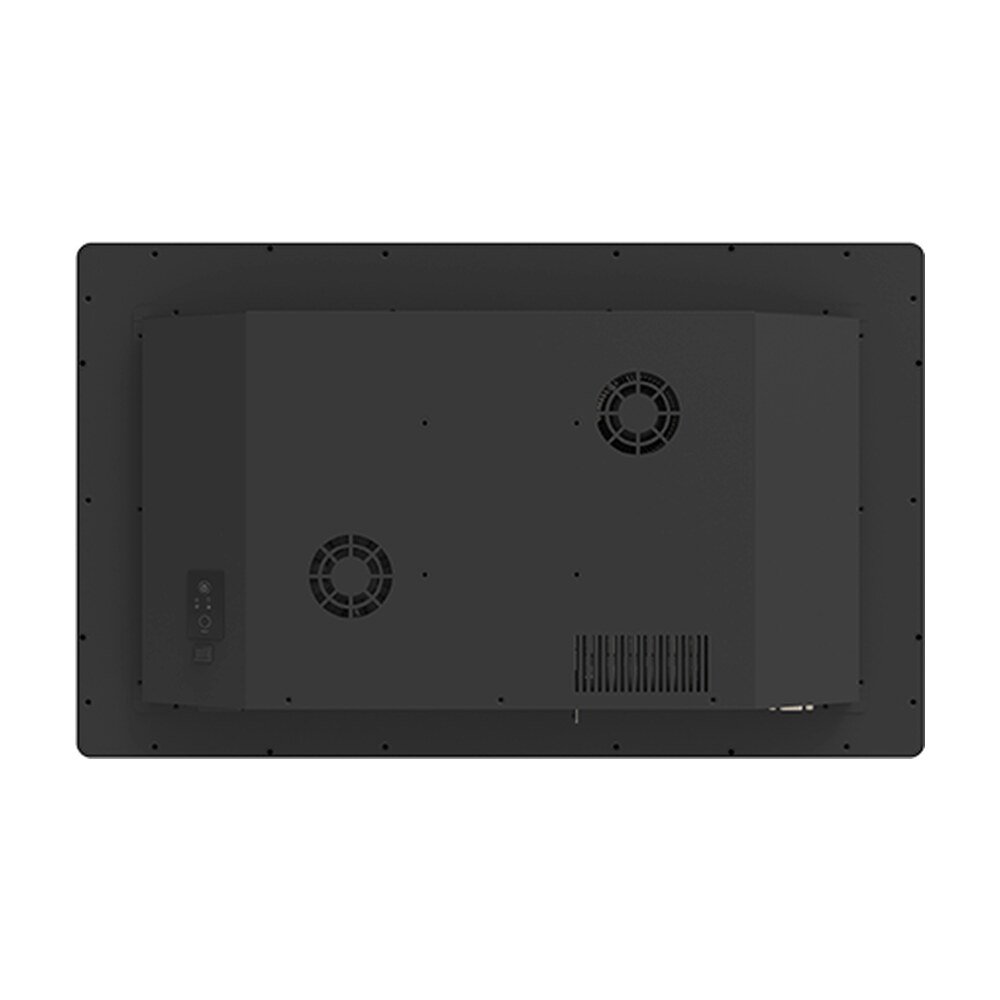

Explore Winmate W24IAD7T-GPA2, an edge AI computer featuring 24-inch display with 1920x1080 resolution for machine vision and edge AI inference.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IAD7T-GPA2, an edge AI computer featuring 24-inch display with 1920x1080 resolution for machine vision and edge AI inference.
Winmate’s AI panel PC support with an advanced Intel vPro platform. This innovative panel PC seamlessly combines powerful capabilities, integrating AI-driven security functionalities supported by Intel® Threat Detection Technology to detect threats efficiently. With Winmate's AI panel PC, users can enjoy a seamless blend of advanced security measures and enhanced productivity, setting a new standard in computing excellence.
With the glass cover lens, the device gains robust protection against scratches. P-Cap Touch facilitates intuitive 4-point multi-touch operation via finger control, enhancing the pleasure of every interaction and simplifying device usage. It contributes significantly to elevating the overall customer experience.
The AI panel pc from Winmate utilizes the new NVIDIA graphics cards to deliver the expected performance, features, and reliability of NVIDIA professional visualization solutions in a compact yet powerful form factor. Additionally, the AI panel PC adopts graphics cards as well, optimized for professional tasks like 3D rendering and video editing, with features like real-time ray tracing and AI-enhanced graphics.
The Edge AI Panel PC combines a large, intuitive interface with powerful edge computing for modern automation. Designed for global deployment, it features a built-in power supply supporting a wide-range 80~264 VAC input directly via a standard 3-pin AC plug. This integrated, adapter-free design saves valuable installation space, simplifies wiring, and ensures stable, reliable operation across fluctuating industrial power grids worldwide.
Equipped with dual 2.5 Gigabit LAN ports, the Winmate AI panel PC facilitates rapid data and image transfers, boasting speeds from 10 to 1000 Mbps. Ideal for factory automation and AIoT applications, it enhances productivity by minimizing latency and optimizing response times, ensuring seamless connectivity for efficient task management.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel® Core™ i5-12500TE Processor 18M Cache, up to 4.30 GHz (Default), Intel® Core™ i7-12700TE Processor 25M Cache, up to 4.60 GHz (Optional), Intel® Core™ i9-12900TE Processor 30M Cache, up to 4.80 GHz (Optional), Intel® Core™ i5 processor 14500T 24M Cache, up to 4.80 GHz (Optional), Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz (Optional), Intel® Core™ i9 processor 14900T 36M Cache, up to 5.50 GHz (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, Raid 0,1 support (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS(When using this feature, WLAN will not be supported) (Optional) |
| Graphic Card | NVIDIA® RTX 4000E Ada 20 GB Graphic Card (Optional), NVIDIA® RTX 2000E Ada 16GB Graphic Card (Optional), NVIDIA® A1000 8GB Graphic Card (Optional) |
| Mechanical | |
| Dimension | 588 x 358 x 75.5 mm |
| Cut out | 513 x 300 mm |
| Weight | 8.5 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module ) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 3 Pin AC Plug |
| Control | |
| Button | 1 x AC Power Switch, 1 x Power Button, 1 x Clear CMOS Button, 1 x Reset Button |
| Accessory | |
| Accessory | Power Cord, VESA screws, Mounting screws |
| Power | |
| Power Rating | 80 ~ 264VAC |
| Consumption | 400W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IAD7T-GPA2 |
| Series | Edge AI Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IAD7T-GPA2 |
|---|---|
| Category | Edge AI Panel PCs, Industrial Panel PC and HMI, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, Raid 0,1 support (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS(When using this feature, WLAN will not be supported) (Optional) |
| Graphic Card | NVIDIA® RTX 4000E Ada 20 GB Graphic Card (Optional), NVIDIA® RTX 2000E Ada 16GB Graphic Card (Optional), NVIDIA® A1000 8GB Graphic Card (Optional) |
| Dimension | 588 x 358 x 75.5 mm |
| Cut out | 513 x 300 mm |
| Weight | 8.5 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module ) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 3 Pin AC Plug |
| Button | 1 x AC Power Switch, 1 x Power Button, 1 x Clear CMOS Button, 1 x Reset Button |
| Accessory | Power Cord, VESA screws, Mounting screws |
| Power Rating | 80 ~ 264VAC |
| Consumption | 400W |
| Brand | Winmate |
| Manufacturer part number | W24IAD7T-GPA2 |
| Series | Edge AI Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
