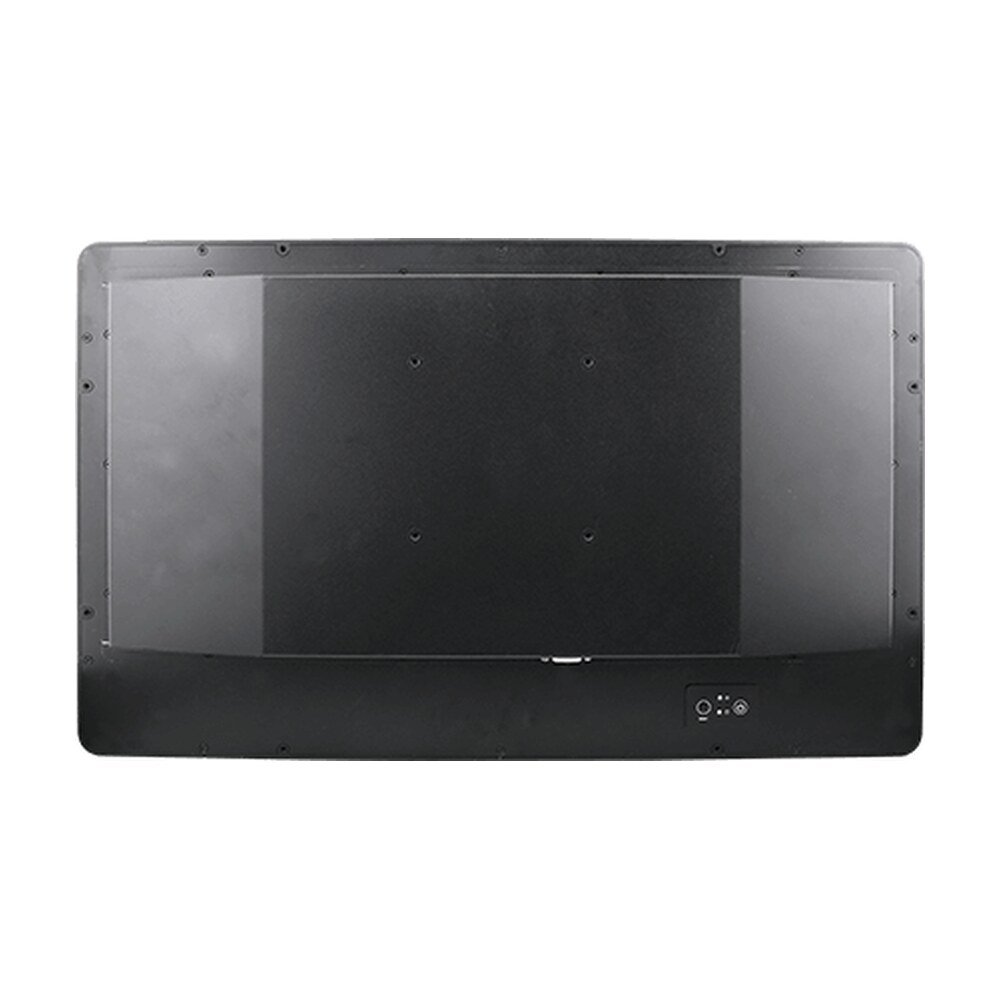

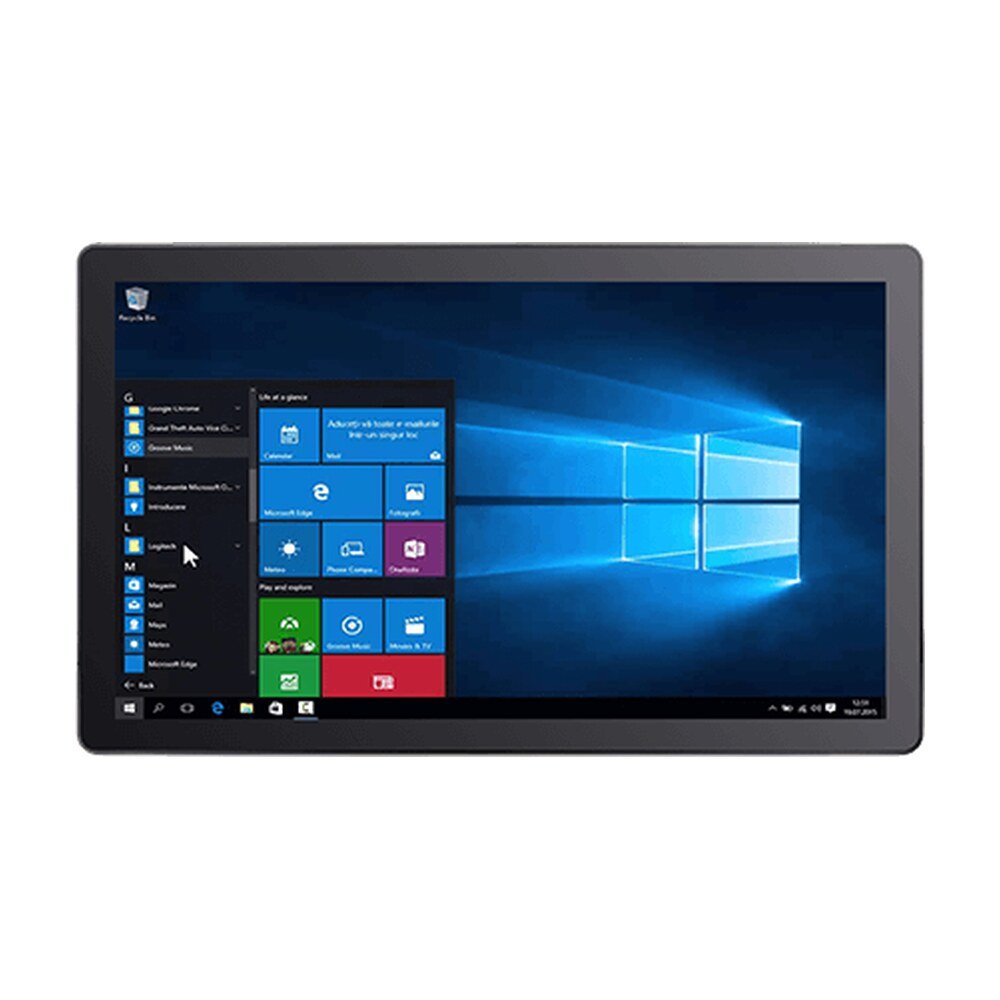

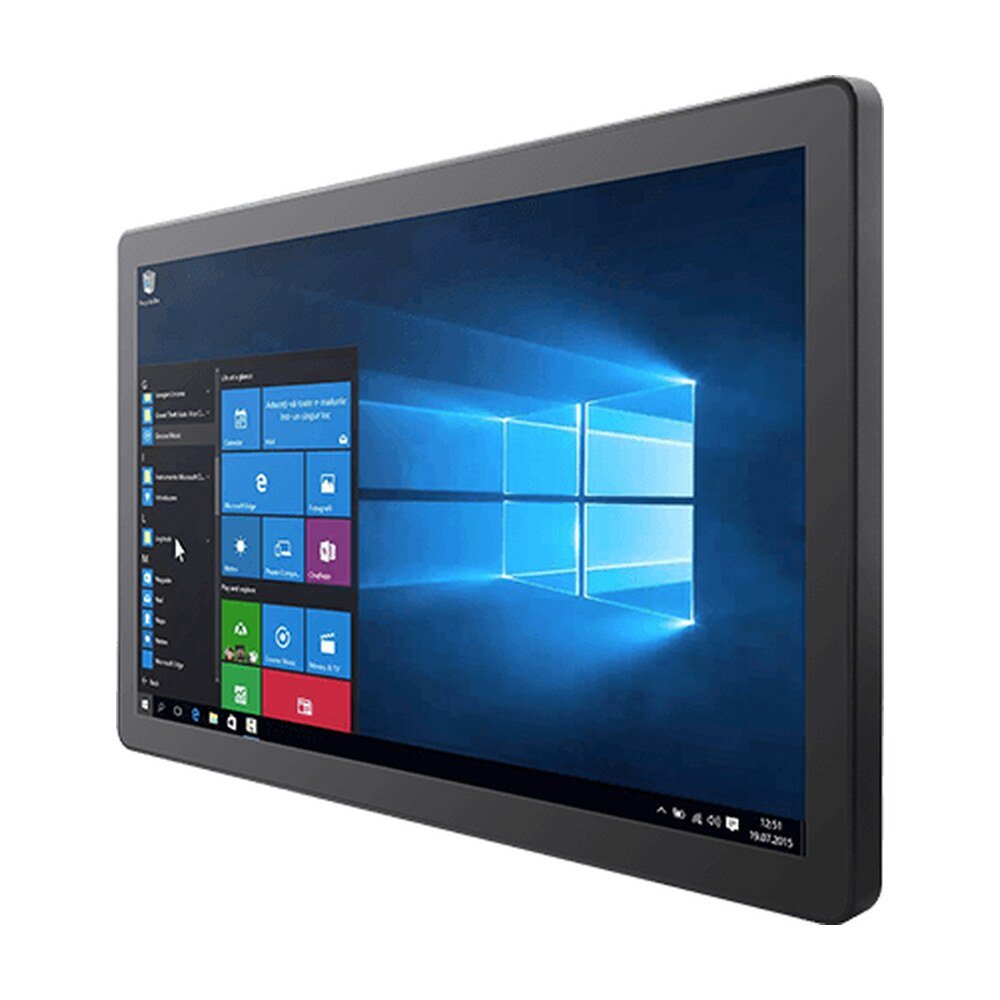

Explore Winmate W24IE3S-GCA2, an industrial panel PC featuring Intel® Celeron® N6211, 24-inch display with 1920x1080 resolution…
The G-WIN GC Series Panel PC from Winmate features a True Flat Design, ensuring a sleek and modern appearance while effectively preventing the buildup of dust and debris. With easy cleaning, the G-WIN GC Series Panel PC becomes your solution for a tidy, effortlessly stylish workspace.
The G-WIN GC Series Panel PC HMIs are equipped with front IP65 water and dust resistance, making them well-suited to endure the challenges of industrial environments.
With its innovative fanless cooling system, the G-WIN GC Series Panel PC ensures silent operation, enhanced reliability, and extended longevity, making the Panel PC the ideal choice for noise-sensitive environments and demanding applications.
The G-WIN GC Series Panel PC offer versatile mounting possibilities, including VESA mounts for wall, desk, and in-vehicle installation. This flexibility makes them suitable for a wide range of industrial scenarios.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -30°C~70°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2 x 1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Mechanical | |
| Dimension | 588 x 358 x 55 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual(Hardcopy) , AC Adapter , Power Cable |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Power | |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IE3S-GCA2 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IE3S-GCA2 |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -30°C~70°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2 x 1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Dimension | 588 x 358 x 55 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | User Manual(Hardcopy) , AC Adapter , Power Cable |
| Button | 1 x Power Button, 1 x Reset Button |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Brand | Winmate |
| Manufacturer part number | W24IE3S-GCA2 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
