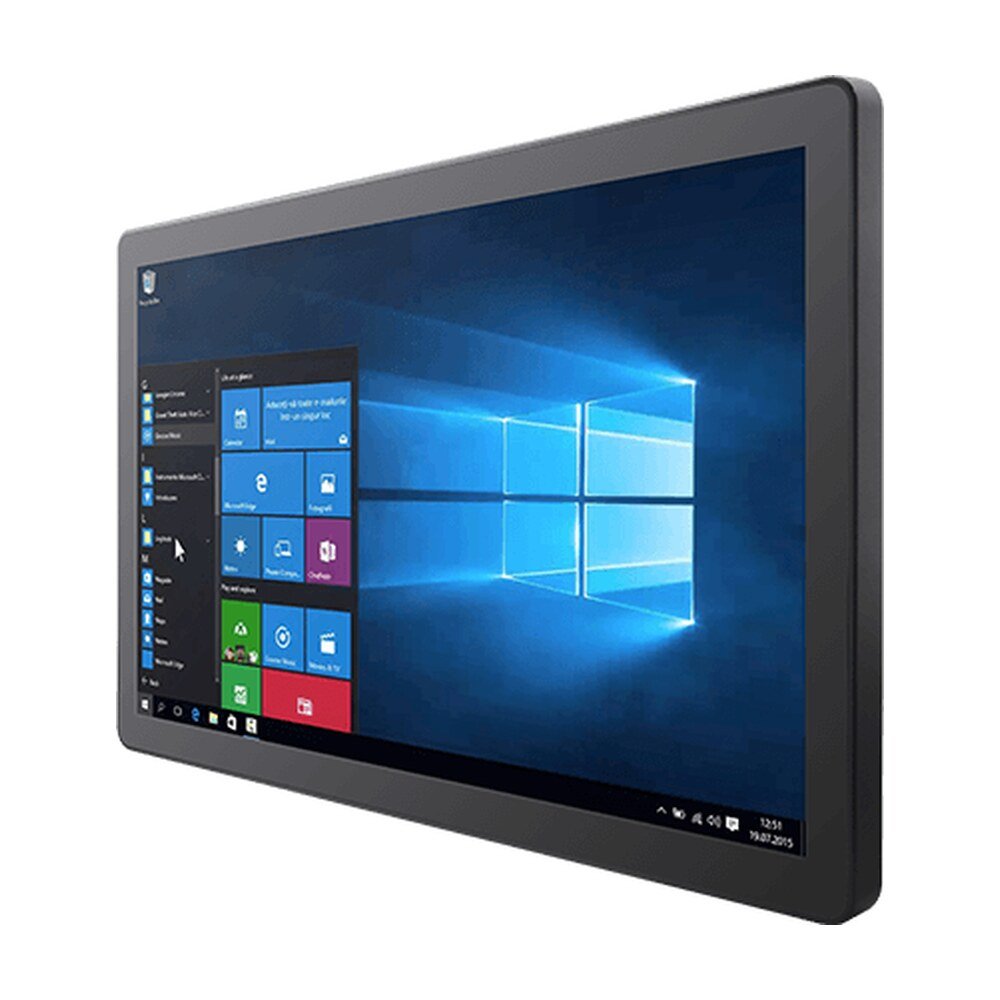

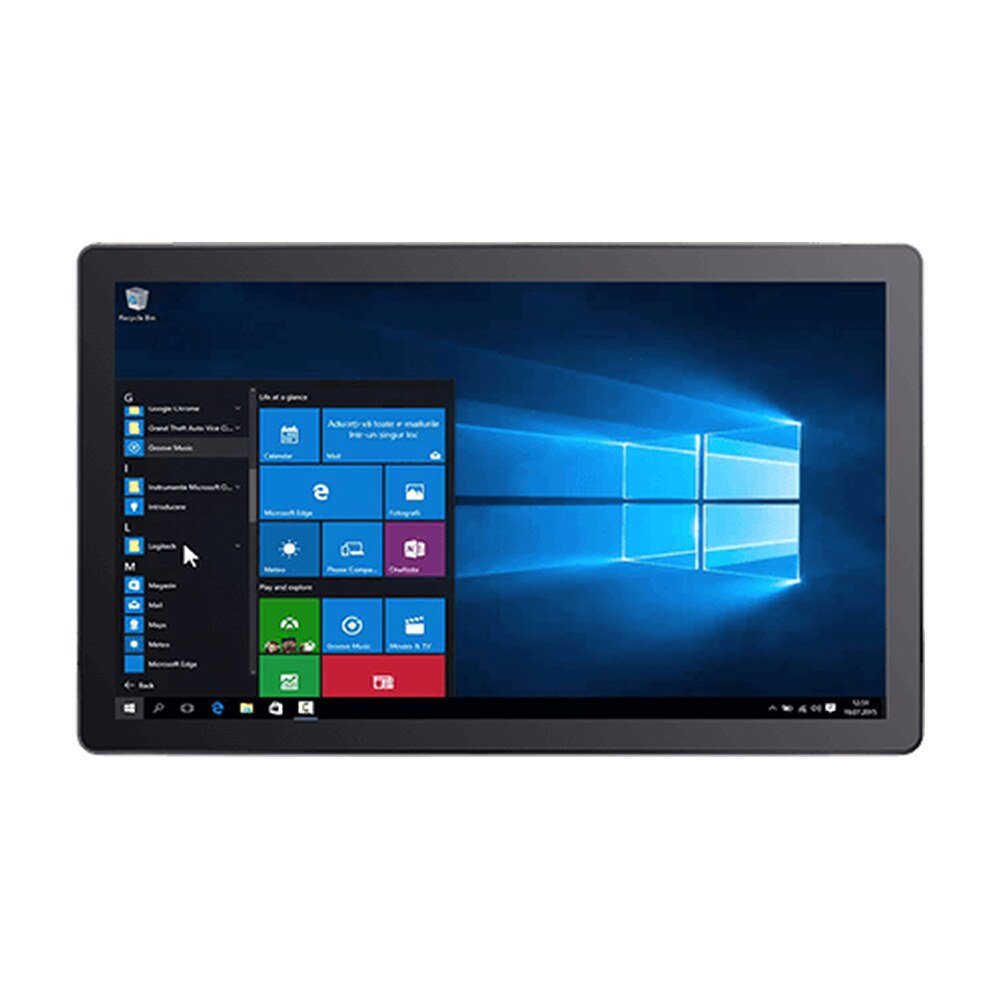

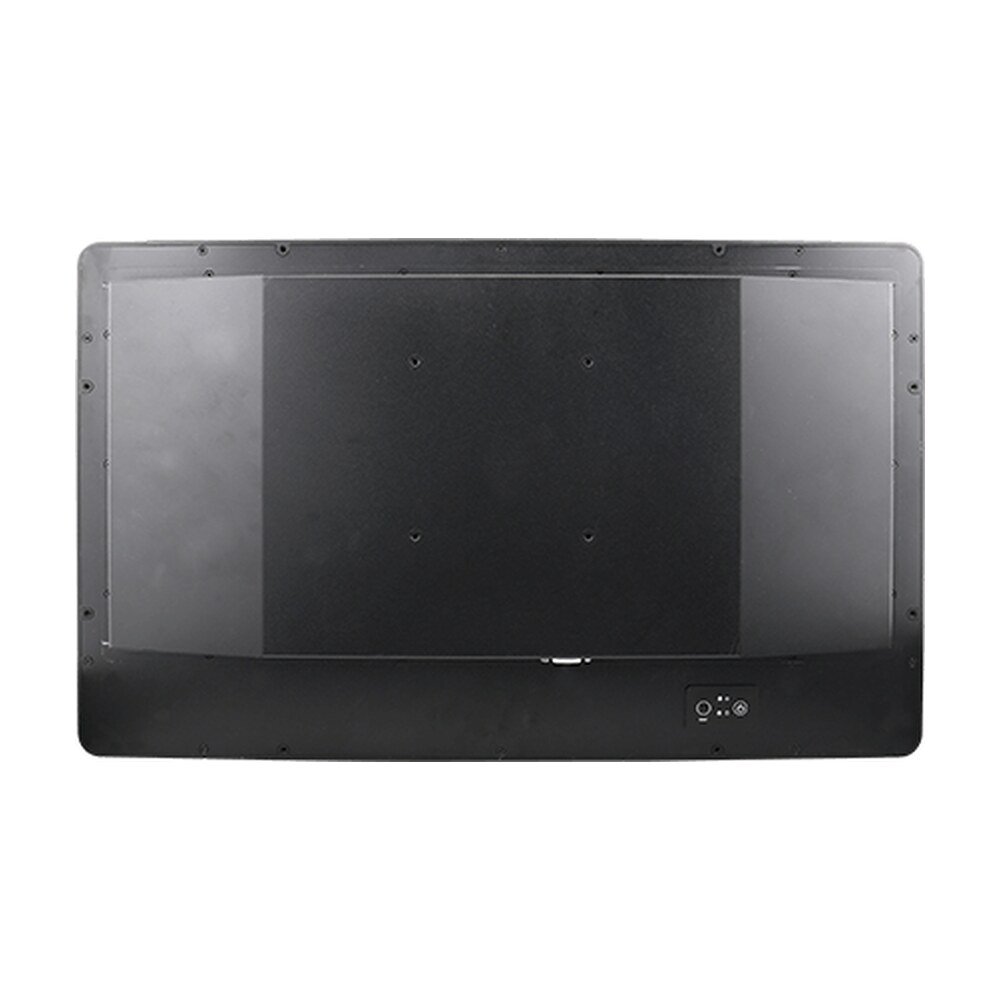

Explore Winmate W24IP3S-GCA2, an industrial panel PC featuring Intel® Pentium® N4200, 24-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IP3S-GCA2, an industrial panel PC featuring Intel® Pentium® N4200, 24-inch display with 1920x1080 resolution…
Winmate's Flat aluminum P-Cap panel PCs and display go beyond that of the standard industrial panel computers with an elegant, edge-to-edge design. Easy to maintain and clean to prevent water or liquid droplets penetrates every opening in the device.
Winmate front IP65 panel PC is protected against outer dust and water splash. Ideal for use in harsh environments.
G-WIN series adopts a fanless design with passive cooling fins. Reduce noise, and power consumption, boost reliability, and extend the life cycle.
The G-WIN Panel PC HMIs supports universal mounting options, such as a VESA mount for a wall, desk, and in-vehicle installation. Suitable for most industrial scenarios.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 1 x RJ45-10/100/1000 Mbps, 1 x RJ45 |
| Mechanical | |
| Dimension | 588 x 358 x 55 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Power | |
| Power Rating | 12V DC with Terminal Block |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IP3S-GCA2 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IP3S-GCA2 |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 1 x RJ45-10/100/1000 Mbps, 1 x RJ45 |
| Dimension | 588 x 358 x 55 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Button | 1 x Power Button, 1 x Reset Button |
| Power Rating | 12V DC with Terminal Block |
| Brand | Winmate |
| Manufacturer part number | W24IP3S-GCA2 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
