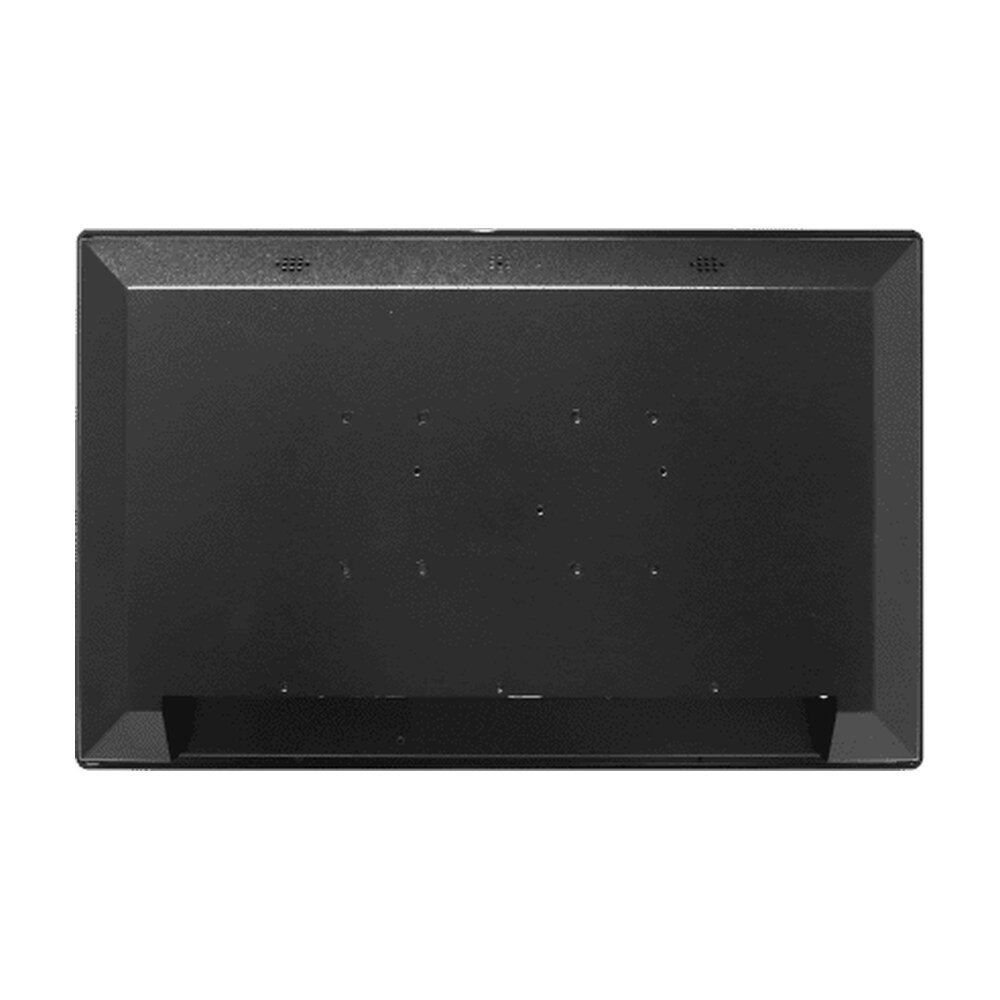

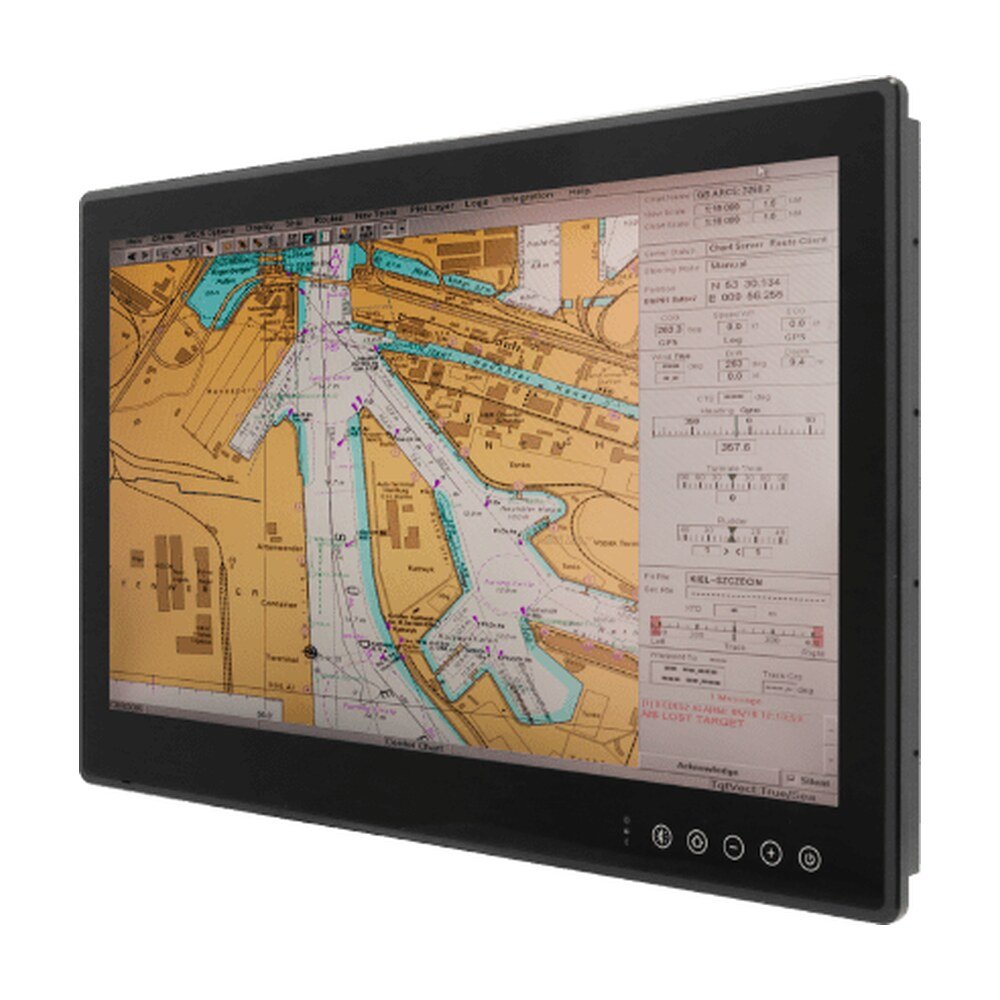

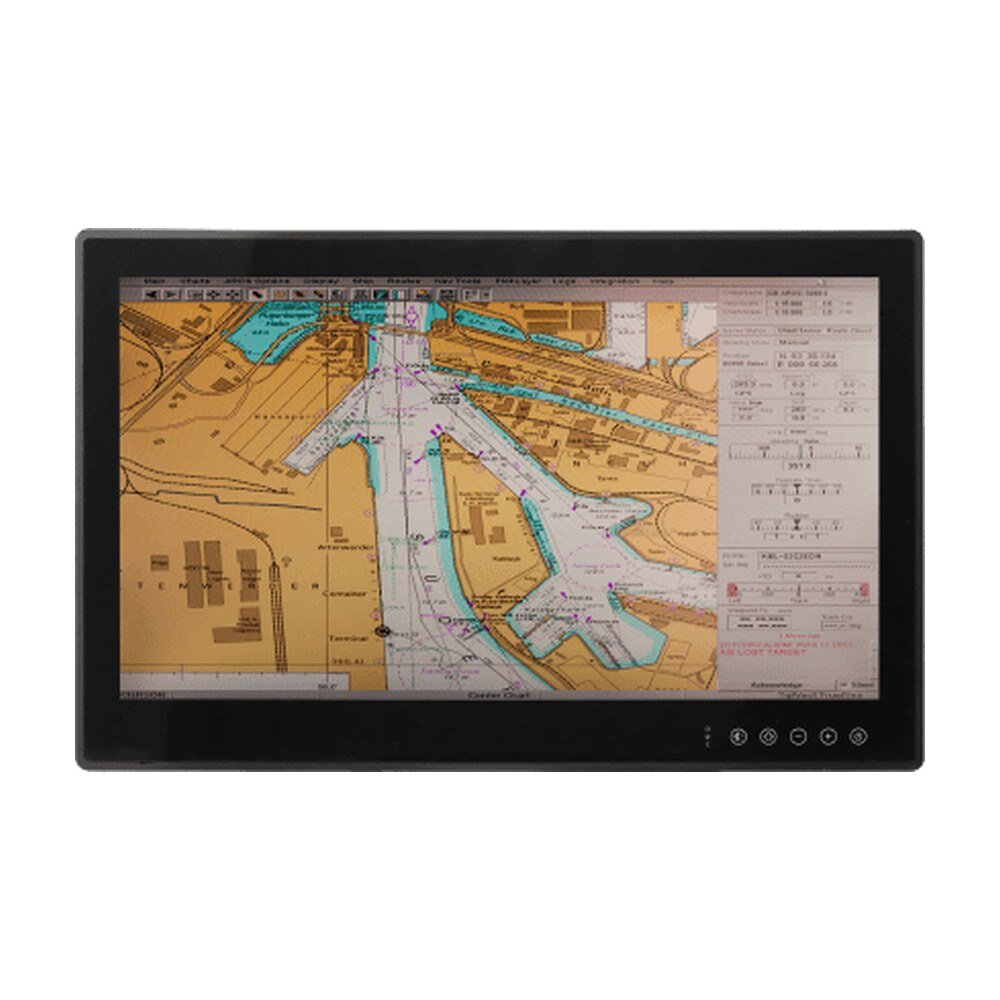

Explore Winmate W24L100-MRA1FP, an ECDIS marine display featuring 24-inch display with 1920x1080 resolution, DNV, IEC 60945 for marine bridge systems and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24L100-MRA1FP, an ECDIS marine display featuring 24-inch display with 1920x1080 resolution, DNV, IEC 60945 for marine bridge systems and…
Winmate ECDIS Marine Displays are made and tested to follow the DNVGL-CG-0339 Standard, IEC60945, and IACS-E10. This ensures they meet the international rules for the marine industry. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.
On Winmate ECDIS Marine Displays, users can switch to day, dusk, or night mode. They can do this using the touch key. This helps them see better in any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.
Easy to maintain and clean. The glass cover lens protects well against scratches. It also reduces the space where dust and liquid can collect. The true-flat surface makes the device look slim and elegant. It stands out from standard industrial and marine computers. The design is sleek and edge-to-edge. It has a rugged build, strong performance, and flexible mounting options.
Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and feature of the ECDIS Marine Displays. Experience their great durability in tough situations, like bridge navigation and control.
Video input consists of DVI-D, HDMI, and VGA connectors. Use the RS232 port for remote control and a USB connector for touch.
| Display | |
|---|---|
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (AR Coating) (Default), AG film (Optional), AR Glass (Optional) |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 5000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 531.36x298.89 mm |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| IO Ports | |
| USB Port | 1 x USB Type A |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 1 x HDMI 1.4 |
| Front Control | Power, Brightness+, Brightness-, OSD/ Enter, ECDIS Key/ ESC |
| Indicator | Day Mode , Dusk Mode, Night Mode |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Mechanical | |
| Dimension | 595 x 385 x 63.8 mm |
| Cut out | 570 x 360 mm |
| Weight | 10.3 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 45W (Typical) |
| Accessory | |
| Accessory | User Manual, Mounting clips x 12, AC to 12V DC Adapter , Power Cord, 3 Pin Terminal Block, Open Wire Cable, 1 x VGA cable, 1 x DVI cable , 1 x HDMI cable, 1 x RS232 cable, 1 x USB cable |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24L100-MRA1FP |
| Series | ECDIS Marine Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24L100-MRA1FP |
|---|---|
| Category | Marine Display, Marine Grade, Winmate |
| Size | 24.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (AR Coating) (Default), AG film (Optional), AR Glass (Optional) |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 5000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 531.36x298.89 mm |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| USB Port | 1 x USB Type A |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 1 x HDMI 1.4 |
| Front Control | Power, Brightness+, Brightness-, OSD/ Enter, ECDIS Key/ ESC |
| Indicator | Day Mode , Dusk Mode, Night Mode |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Dimension | 595 x 385 x 63.8 mm |
| Cut out | 570 x 360 mm |
| Weight | 10.3 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 45W (Typical) |
| Brand | Winmate |
| Manufacturer part number | W24L100-MRA1FP |
| Series | ECDIS Marine Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
