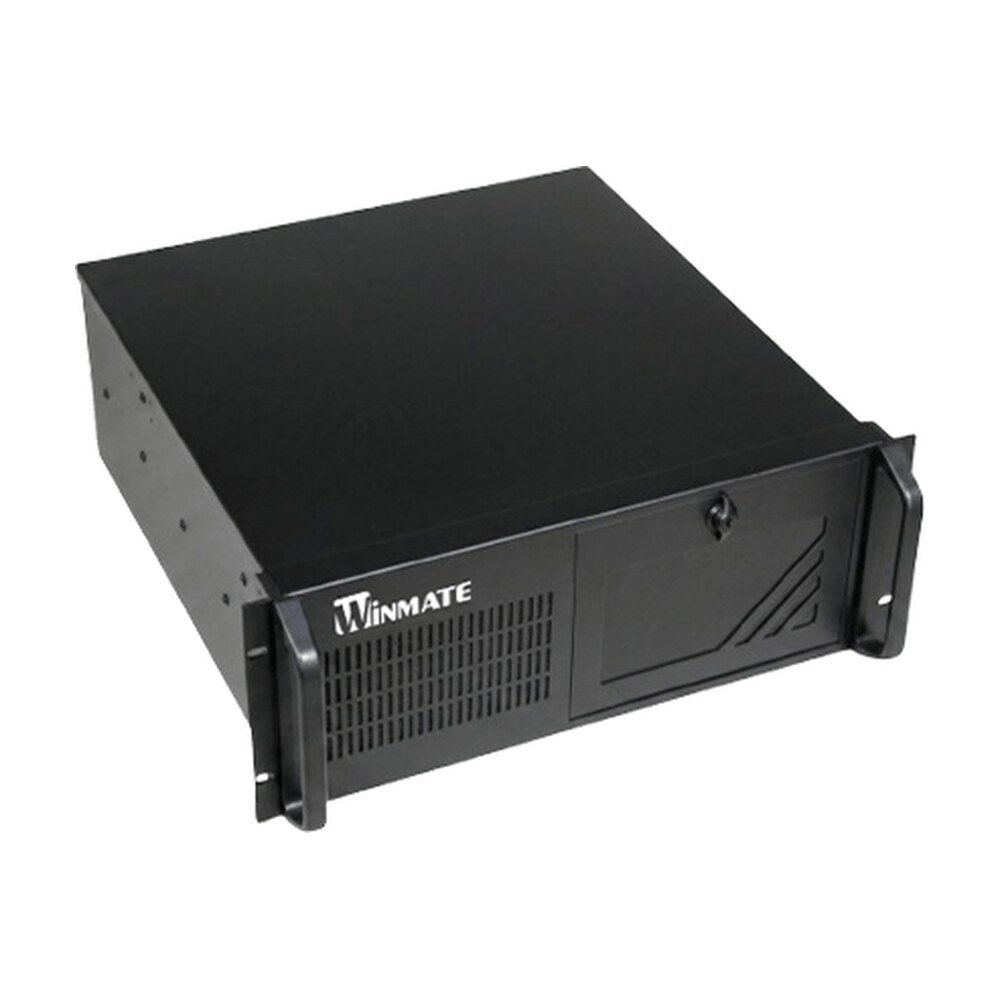

Winmate W4U-IRP-S 4U IPC Server supports Intel 12th–14th Gen Core CPUs, 128GB DDR5, a 300W GPU, and flexible expansion for Edge AI and machine vision.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Winmate W4U-IRP-S 4U IPC Server supports Intel 12th–14th Gen Core CPUs, 128GB DDR5, a 300W GPU, and flexible expansion for Edge AI and machine vision.
Powered by Intel® 12th/13th/14th Gen processors (up to 125W) and the R680E chipset, it delivers balanced, energy-efficient computing for machine vision and automation.
Features 7 slots to easily integrate GPUs, frame grabbers, and motion control cards for complex workloads.
Fully CE and FCC certified, this 4U rackmount server is built for continuous, highly stable operation in demanding factory environments.
An overview of a powerful, compact computing node designed for AI and demanding workloads. It features dedicated support for a single 300W high-performance GPU (like NVIDIA RTX series) for acceleration. This is complemented by a flexible single ATX power system, with options from 850W to 1300W, to provide robust, reliable power.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i7 processor 14700 (up to 5.40 GHz) (Default), Intel® socket 1700 for 14th/ 13th/12th Gen Intel® Core™ i9/ i7/ i5/ i3 processors, Supports up to 125W TDP |
| Chipset | Intel® R680E |
| Memory | 2 x U-DIMM, DDR5 5600 MHz, 32GB (16GB per DIMM) (Default), 4 x U-DIMM, DDR5 5600 MHz, max. 128GB(Max. 32GB per DIMM) |
| Storage | 256GB SSD (Default), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional), 7 x SATA III for 2.5" SSD/HDD up to 8TB (Supports RAID 0,1,5,10) (Optional) |
| Ethernet controller | 3 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | 1 x Internal SPI TPM header |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Sensors | Chassis Intrusion Detection |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 5.0 x16 Slot (x16 mode.When PCIe 5.0 x8 slot being used, this slot will change to x8 mode), 1 x PCIe 5.0 x 8 Slot (x8 mode), 1 x PCIe 4.0 x4 Slot (x4 mode), 1 x PCIe 4.0 x4 Slot (x4 mode), 1 x PCIe 3.0 x4 Slot (x4 mode), 2 x PCI |
| Graphic Card | NVIDIA RTX A1000 Graphic Card (Optional), NVIDIA RTX A2000E 12 GB Graphic Card (Optional), NVIDIA RTX 2000E Ada Graphic Card (Optional), NVIDIA RTX PRO 2000 BlackwellGraphic Card (Optional), NVIDIA RTX PRO 4000 Blackwell SFF Graphic Card (Optional), NVIDIA RTX 4000E Ada Graphic Card (Optional), NVIDIA RTX A4000E Graphic Card (Optional), NVIDIA RTX PRO 4000 Blackwell Graphic Card (Optional), NVIDIA RTX PRO 4500 BlackWell 32GB Graphic Card (Optional), NVIDIA RTX PRO 5000 BlackWell 48GB /72GB Graphic Card (Optional), NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition (96GB) Graphic Card (Optional), NVIDIA WinFast RTX 5060 HURRICANE 8GB Graphic Card (Optional) |
| OOB Management | Support Intel® AMT and Intel vPro® (Varies by CPU SKU) |
| Mechanical | |
| Dimension | 483 x 177 x 451mm |
| Weight | 35 kg |
| Mounting | 4U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | Front side 2 x USB2.0 (Type-A), Rear side : 6 x USB3.2 Gen2: (Type- A) |
| Serial Port | Rear side: 1 x RS232/422/485 (Default RS232) |
| LAN | 3 x 2.5GbE RJ45 Connector |
| Video | 1 x DisplayPort 1.4 output. Maximum, resolution of 4096 x 2160 @ 60 Hz, 1 x HDMI 2.1 output. Maximum, resolution of 4096 x 2160 @ 30 Hz, 1 x VGA output.Maximum, resolution of 1920 x 1200 @ 60 Hz |
| Audio | Mic in, Line in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 5.0 x16 Slot (x16 mode.When PCIe 5.0 x8 slot being used, this slot will change to x8 mode), 1 x PCIe 5.0 x 8 Slot (x8 mode), 1 x PCIe 4.0 x4 Slot (x4 mode), 1 x PCIe 4.0 x4 Slot (x4 mode), 1 x PCIe 3.0 x4 Slot (x4 mode), 2 x PCI |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | VAC 90-264, 500W, ATX P/S, 80 PLUS® Bronze (Default), VAC 90-264, 650W~850W, ATX P/S, 80 PLUS® Gold (Without GPU) (Optional), VAC 90-264, 850W/1300W, ATX P/S, 80 PLUS® Gold (With GPU) (Optional) |
| Drive Bay | 1 x Hot-swap RAID BOX for SATAIII/SATAII or NVMe (Optional), 1 x 3.5 (Optional), 1 x 24X Slim DVD (Optional) |
| Internal connector | 2 x Headers Support Additional 4 x USB3.2 Gen1, 2 x Headers Support Additional 2 x USB2.0 , 5 x COM Headers (1 x RS232/422/485,4 x RS232) |
| Control | |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control) |
| Accessory | |
| Accessory | Power Cord, Quick Start Guide |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W4U-IRP-S |
| Series | 4U Rack IPC Server |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W4U-IRP-S |
|---|---|
| Category | Embedded Computing, Rack Server, Winmate |
| Chipset | Intel® R680E |
| Memory | 2 x U-DIMM, DDR5 5600 MHz, 32GB (16GB per DIMM) (Default), 4 x U-DIMM, DDR5 5600 MHz, max. 128GB(Max. 32GB per DIMM) |
| Ethernet controller | 3 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | 1 x Internal SPI TPM header |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Sensors | Chassis Intrusion Detection |
| OOB Management | Support Intel® AMT and Intel vPro® (Varies by CPU SKU) |
| Dimension | 483 x 177 x 451mm |
| Weight | 35 kg |
| Mounting | 4U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | Front side 2 x USB2.0 (Type-A), Rear side : 6 x USB3.2 Gen2: (Type- A) |
| Serial Port | Rear side: 1 x RS232/422/485 (Default RS232) |
| LAN | 3 x 2.5GbE RJ45 Connector |
| Audio | Mic in, Line in, Line out |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Drive Bay | 1 x Hot-swap RAID BOX for SATAIII/SATAII or NVMe (Optional), 1 x 3.5 (Optional), 1 x 24X Slim DVD (Optional) |
| Internal connector | 2 x Headers Support Additional 4 x USB3.2 Gen1, 2 x Headers Support Additional 2 x USB2.0 , 5 x COM Headers (1 x RS232/422/485,4 x RS232) |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control) |
| Accessory | Power Cord, Quick Start Guide |
| Brand | Winmate |
| Manufacturer part number | W4U-IRP-S |
| Series | 4U Rack IPC Server |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
